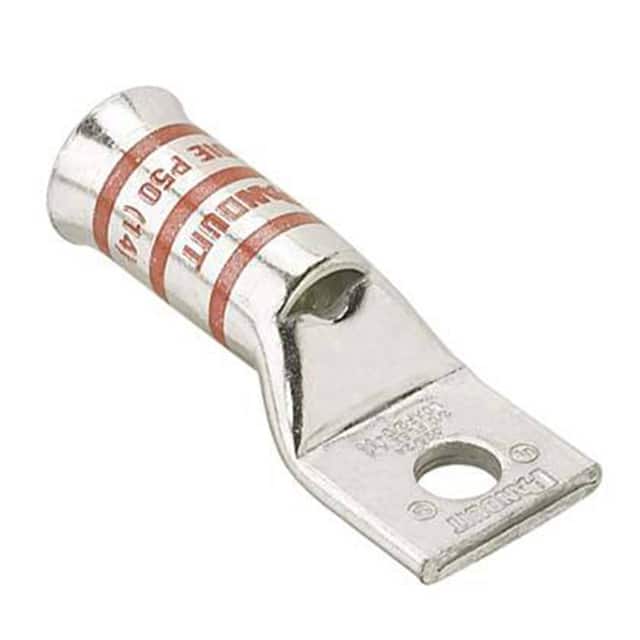

Panduit lugs [LCAF6-56-L], PAC238

Name: Panduit lugs [LCAF6-56-L], PAC238
Brand: Panduit
SKU: PAC238
Availability: InStock

Mã kho: PAC238

Mã nhà sản xuất: LCAF6-56-L

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flared barrel, #6 AWG wire, 5/16 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.81
Barrel Length (mm)	20.6
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.56
Tongue Width (mm)	14.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.8
Overall Length (In.)	1.73
Overall Length (mm)	43.9
Color Code	Blue
Panduit Die Index Number	P24
Wire Strip Length (In.)	42,954
Wire Strip Length (mm)	22.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
