Panduit lugs [LCAN1/0-14F-X], PAE480

Name: Panduit lugs [LCAN1/0-14F-X], PAE480
Brand: Panduit
SKU: PAE480
Availability: InStock

Mã kho: PAE480

Mã nhà sản xuất: LCAN1/0-14F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

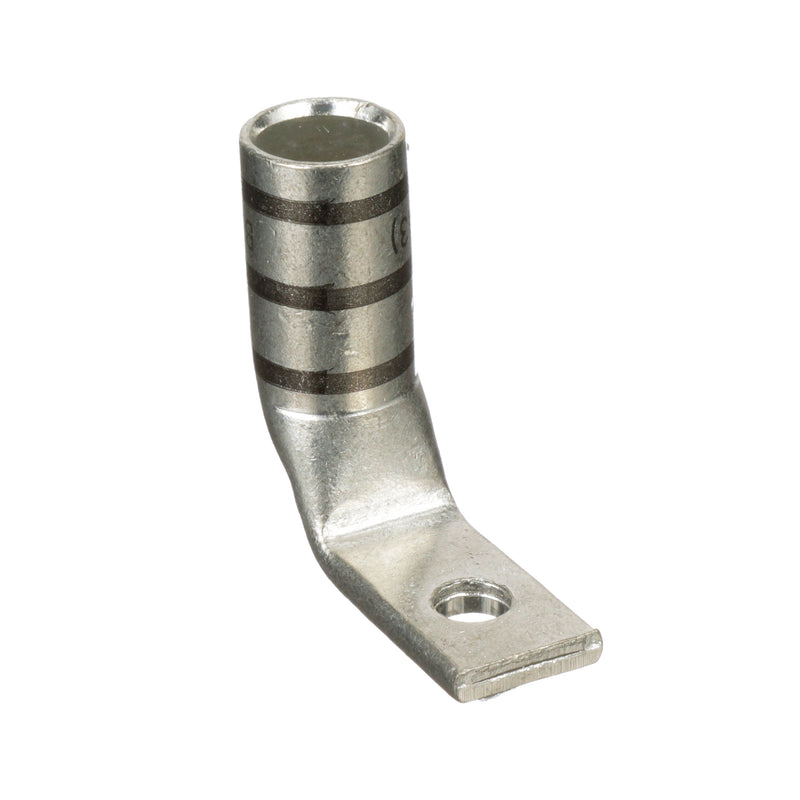

Copper Compression Lug, 1 Hole, #1/0 AWG, Narrow Tongue, 1/4" Stud, 90° Angle Tongue

Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.25
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Narrow
Tongue Width (In.)	0.52
Tongue Width (mm)	13.208
Tongue Angle	90°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.58
Overall Length (mm)	40.4
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
T & B Die Index Number	42
Wire Strip Length (In.)	1
Part Features	NA
