Panduit lugs [LCAN1/0-38-X], PAE481

Name: Panduit lugs [LCAN1/0-38-X], PAE481
Brand: Panduit
SKU: PAE481
Availability: InStock

Mã kho: PAE481

Mã nhà sản xuất: LCAN1/0-38-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

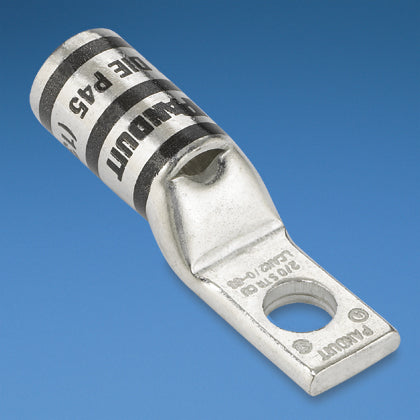

Copper Compression Lug, 1 Hole, #1/0 AWG, Narrow Tongue, 3/8" Stud

Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.375
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Narrow
Tongue Width (In.)	0.55
Tongue Width (mm)	13.97
Tongue Angle	Straight
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.302
Overall Length (In.)	2.1
Overall Length (mm)	53.34
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
T & B Die Index Number	42
Wire Strip Length (In.)	1
Part Features	NA
