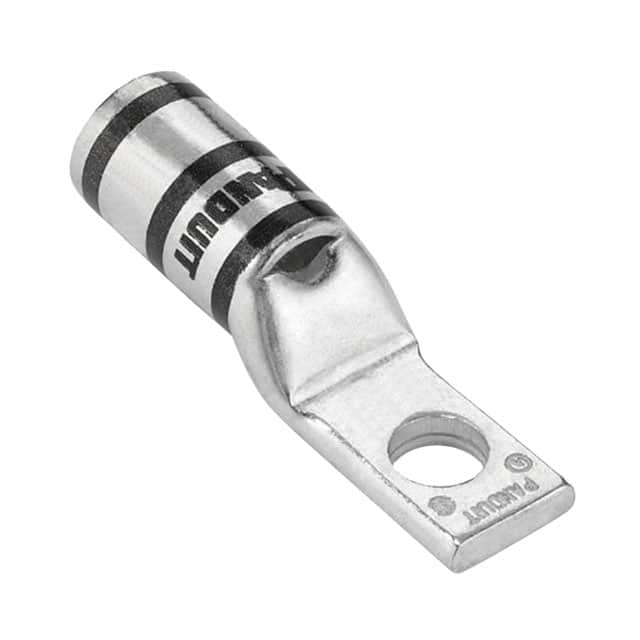

Panduit lugs [LCAN2/0-14-X], PAC248

Mã kho: PAC248
Mã nhà sản xuất: LCAN2/0-14-X
Tên nhà sản xuất: Panduit
Original price 216.960₫ - Original price 216.960₫
Original price
216.960₫
216.960₫ - 216.960₫
Current price 216.960₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAN2/0-14-X

MÔ TẢ SẢN PHẨM

One-hole, standard barrel with window, narrow tongue lug, 2/0 AWG wire, 1/4 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) 2/0
Copper Conductor Size (kcmil) 133.1
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.98
Barrel Length (mm) 24.9
Tongue Type Narrow
Tongue Width (In.) 0.58
Tongue Width (mm) 14.7
Tongue Angle Straight
Tongue Thickness (In.) 0.14
Tongue Thickness (mm) 3.6
Overall Length (In.) 2.09
Overall Length (mm) 53.1
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Black
Panduit Die Index Number P45
Burndy Die Index Number 13
Wire Strip Length (In.) 1.06
Wire Strip Length (mm) 27
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
