Panduit lugs [LCAN2/0-56F-X], PAE487

Name: Panduit lugs [LCAN2/0-56F-X], PAE487
Brand: Panduit
SKU: PAE487
Availability: InStock

Mã kho: PAE487

Mã nhà sản xuất: LCAN2/0-56F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

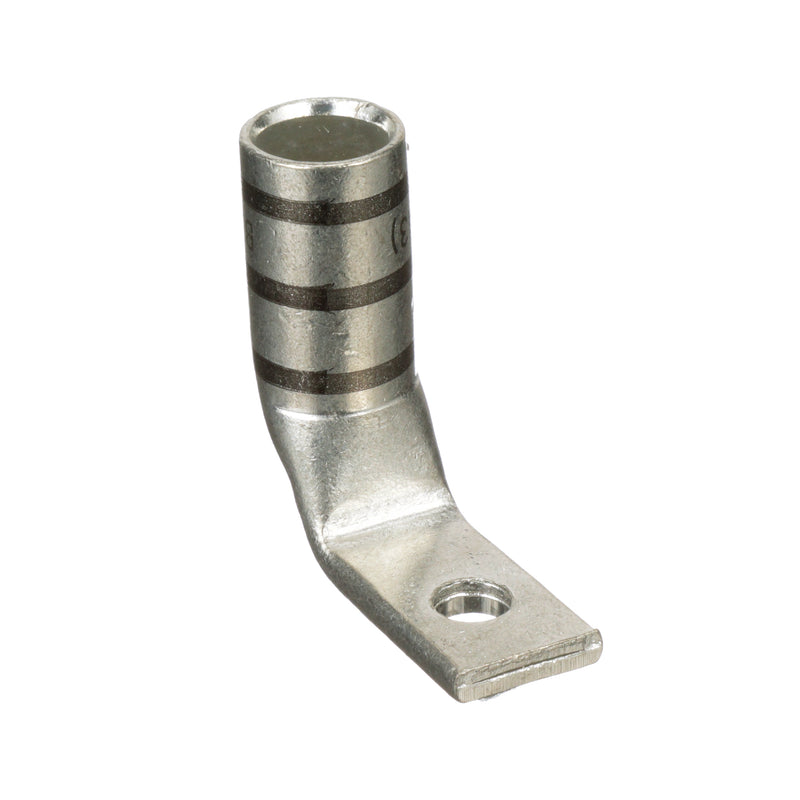

Copper Compression Lug, 1 Hole, #2/0 AWG, Narrow Tongue, 5/16" Stud, 90° Angle Tongue

Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	5/16
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.98
Barrel Length (mm)	24.9
Tongue Type	Narrow
Tongue Width (In.)	0.58
Tongue Width (mm)	14.7
Tongue Angle	90°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.63
Overall Length (mm)	41.4
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
T & B Die Index Number	45
Wire Strip Length (In.)	1 1/16
Part Features	NA
