Panduit lugs [LCAN2/0-56H-X], PAE488

Mã kho: PAE488
Mã nhà sản xuất: LCAN2/0-56H-X
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAN2/0-56H-X

MÔ TẢ SẢN PHẨM

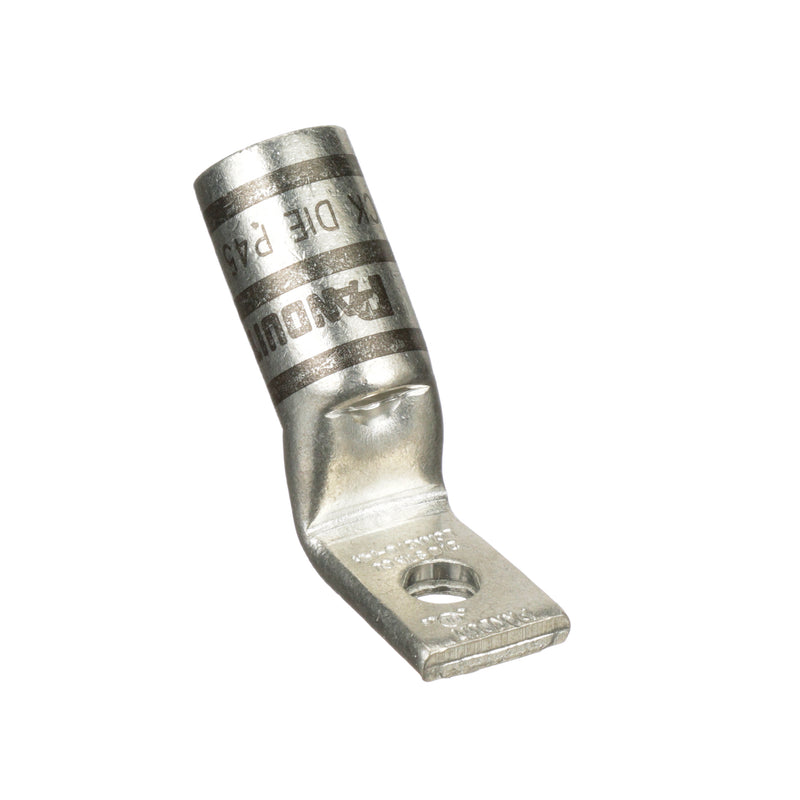

Copper Compression Lug, 1 Hole, #2/0 AWG, Narrow Tongue, 5/16" Stud, 45° Angle Tongue

_THÔNG SỐ KỸ THUẬT:

Lug Type 1 Stud Hole Lug
Sub Brand NA
Stud Hole Size (In.) 5/16
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 0.98
Barrel Length (mm) 24.9
Tongue Type Narrow
Tongue Width (In.) 0.58
Tongue Width (mm) 14.7
Tongue Angle 45°
Tongue Thickness (In.) 0.13
Tongue Thickness (mm) 3.3
Overall Length (In.) 1.77
Overall Length (mm) 44.9
Finish/Coating Tin-Plated
Standards Met UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV) 35
Color Code Black
Panduit Die Index Number P45
Burndy Die Index Number 13
T & B Die Index Number 45
Wire Strip Length (In.) 1 1/16
Part Features NA
