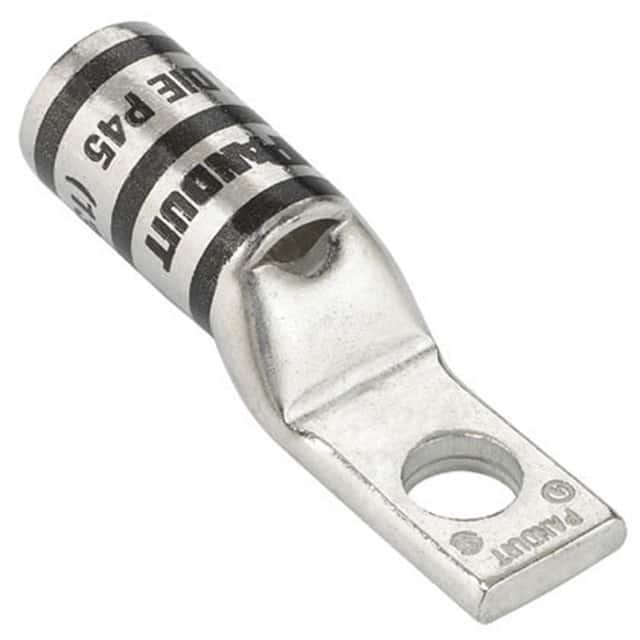

Panduit lugs [LCAN2-10-Q], PAD239

Name: Panduit lugs [LCAN2-10-Q], PAD239
Brand: Panduit
SKU: PAD239
Price: 230760.0 VND
Availability: InStock

Mã kho: PAD239

Mã nhà sản xuất: LCAN2-10-Q

Tên nhà sản xuất: Panduit

230.760₫ - 230.760₫

230.760₫

230.760₫ - 230.760₫

230.760₫

One-hole, standard barrel with window, narrow tongue lug, #2 AWG wire, #10 stud hole.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	66.4
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Narrow
Tongue Width (In.)	0.42
Tongue Width (mm)	10.7
Tongue Angle	Straight
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	1.67
Overall Length (mm)	42.4
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (mm)	23.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
