Panduit lugs [LCAN2-14F-Q], PAE483

Name: Panduit lugs [LCAN2-14F-Q], PAE483
Brand: Panduit
SKU: PAE483
Availability: InStock

Mã kho: PAE483

Mã nhà sản xuất: LCAN2-14F-Q

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

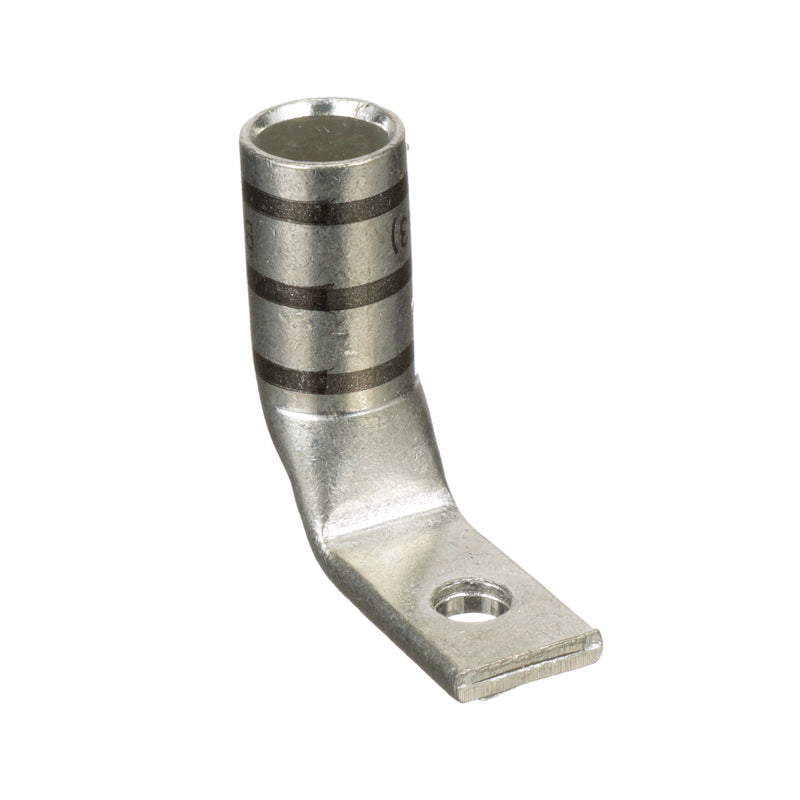

Copper Compression Lug, 1 Hole, #2 AWG, Narrow Tongue, 1/4" Stud, 90° Angle Tongue

Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.25
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Narrow
Tongue Width (In.)	0.42
Tongue Width (mm)	10.668
Tongue Angle	Straight
Tongue Thickness (In.)	0.1
Tongue Thickness (mm)	2.5
Overall Length (In.)	1.38
Overall Length (mm)	33.05
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
T & B Die Index Number	33
Wire Strip Length (In.)	15/16
Part Features	NA
