Panduit lugs [LCAN250-56-X], PAE489

Name: Panduit lugs [LCAN250-56-X], PAE489
Brand: Panduit
SKU: PAE489
Availability: InStock

Mã kho: PAE489

Mã nhà sản xuất: LCAN250-56-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

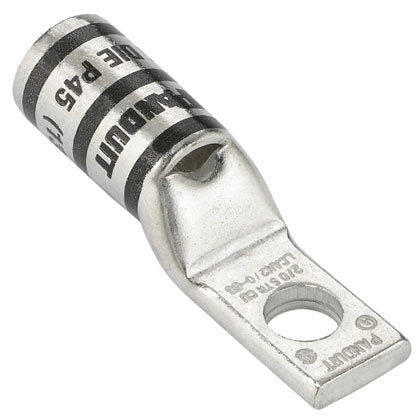

Copper Compression Lug, 1 Hole, 250 KCMIL, Narrow Tongue, 5/16" Stud

Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	5/16
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	1.25
Barrel Length (mm)	31.8
Tongue Type	Narrow
Tongue Width (In.)	0.77
Tongue Width (mm)	19.6
Tongue Angle	Straight
Tongue Thickness (In.)	0.15
Tongue Thickness (mm)	3.8
Overall Length (In.)	2.48
Overall Length (mm)	63
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Yellow
Panduit Die Index Number	P62
Burndy Die Index Number	16
T & B Die Index Number	62
Wire Strip Length (In.)	1.3125
Part Features	NA
