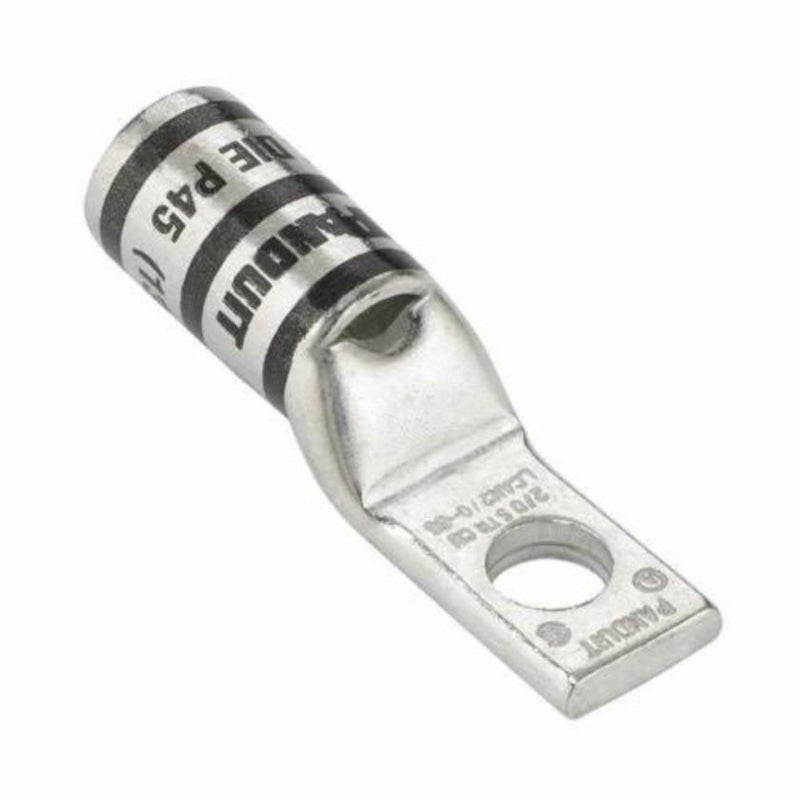

Panduit lugs [LCAN3/0-14-X], PAC251

Name: Panduit lugs [LCAN3/0-14-X], PAC251
Brand: Panduit
SKU: PAC251
Price: 286460.0 VND
Availability: InStock

Mã kho: PAC251

Mã nhà sản xuất: LCAN3/0-14-X

Tên nhà sản xuất: Panduit

286.460₫ - 286.460₫

286.460₫

286.460₫ - 286.460₫

286.460₫

One-hole, standard barrel with window, narrow tongue lug, 3/0 AWG wire, 1/4 stud hole.

Copper Conductor Size (AWG)	#3
Copper Conductor Size (kcmil)	168
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.14
Barrel Length (mm)	29
Tongue Type	Narrow
Tongue Width (In.)	0.64
Tongue Width (mm)	16.3
Tongue Angle	Straight
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	2.28
Overall Length (mm)	69.6
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Orange
Panduit Die Index Number	P50
Burndy Die Index Number	14
Wire Strip Length (In.)	1.19
Wire Strip Length (mm)	30.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
