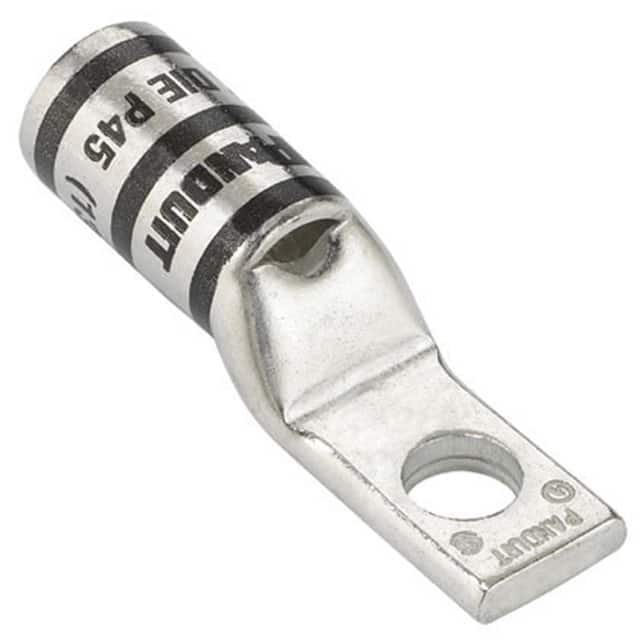

Panduit lugs [LCAN4-14-L], PAC257
Panduit lugs [LCAN4-14-L], PAC257

Panduit lugs [LCAN4-14-L], PAC257

Mã kho: PAC257
Mã nhà sản xuất: LCAN4-14-L
Tên nhà sản xuất: Panduit
136.280₫ - 136.280₫
136.280₫
136.280₫ - 136.280₫
136.280₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAN4-14-L

MÔ TẢ SẢN PHẨM

One-hole, standard barrel with window, narrow tongue lug, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #2
Copper Conductor Size (kcmil) 67.4
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.81
Barrel Length (mm) 20.6
Tongue Type Narrow
Tongue Width (In.) 0.4
Tongue Width (mm) 10.2
Tongue Angle Straight
Tongue Thickness (In.) 0.11
Tongue Thickness (mm) 2.8
Overall Length (In.) 1.63
Overall Length (mm) 41.4
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
Color Code Gray
Panduit Die Index Number P29
Burndy Die Index Number 8
Wire Strip Length (In.) 42,954
Wire Strip Length (mm) 22.2
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
