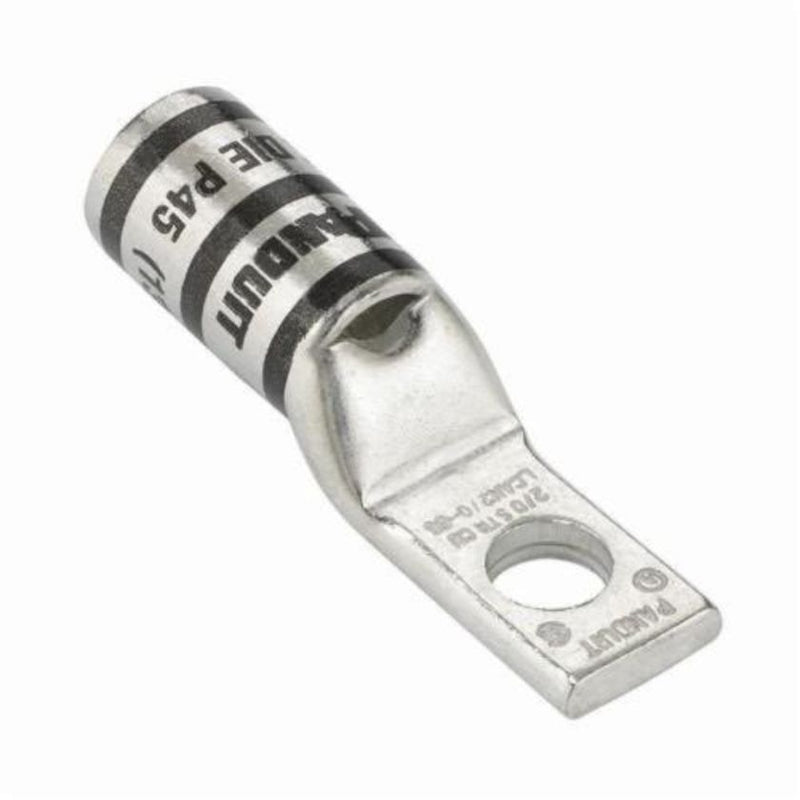

Panduit lugs [LCAN400-38-6], PAC258

Name: Panduit lugs [LCAN400-38-6], PAC258
Brand: Panduit
SKU: PAC258
Price: 480970.0 VND
Availability: InStock

Mã kho: PAC258

Mã nhà sản xuất: LCAN400-38-6

Tên nhà sản xuất: Panduit

480.970₫ - 480.970₫

480.970₫

480.970₫ - 480.970₫

480.970₫

One-hole, standard barrel with window, narrow tongue lug, 400 kcmil cable, 3/8 stud hole.

Copper Conductor Size (kcmil)	400
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Narrow
Tongue Width (In.)	0.95
Tongue Width (mm)	24.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.23
Tongue Thickness (mm)	4.6
Overall Length (In.)	3.24
Overall Length (mm)	81.8
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
