Panduit lugs [LCAN750-38-6], PAD248

Name: Panduit lugs [LCAN750-38-6], PAD248
Brand: Panduit
SKU: PAD248
Price: 1198690.0 VND
Availability: InStock

Mã kho: PAD248

Mã nhà sản xuất: LCAN750-38-6

Tên nhà sản xuất: Panduit

1.198.690₫ - 1.198.690₫

1.198.690₫

1.198.690₫ - 1.198.690₫

1.198.690₫

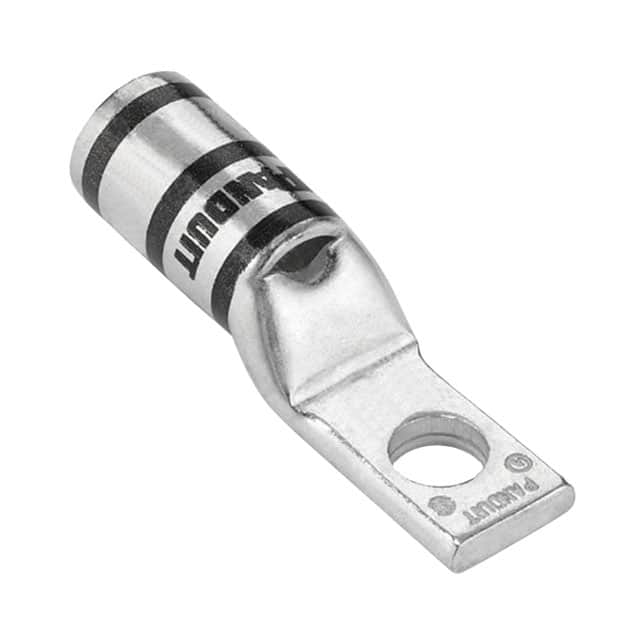

One-hole, standard barrel with window, narrow tongue lug, 750 kcmil cable, 3/8 stud hole.

Copper Conductor Size (kcmil)	750
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.88
Barrel Length (mm)	47.8
Tongue Type	Narrow
Tongue Width (In.)	1.3
Tongue Width (mm)	33
Tongue Angle	Straight
Tongue Thickness (In.)	0.28
Tongue Thickness (mm)	7.1
Overall Length (In.)	3.84
Overall Length (mm)	97.5
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Black
Panduit Die Index Number	P106
Burndy Die Index Number	24
Wire Strip Length (In.)	1.94
Wire Strip Length (mm)	49.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
