Panduit lugs [LCAS2-38-Q], PAE960

Name: Panduit lugs [LCAS2-38-Q], PAE960
Brand: Panduit
SKU: PAE960
Price: 129740.0 VND
Availability: InStock

Mã kho: PAE960

Mã nhà sản xuất: LCAS2-38-Q

Tên nhà sản xuất: Panduit

129.740₫ - 129.740₫

129.740₫

129.740₫ - 129.740₫

129.740₫

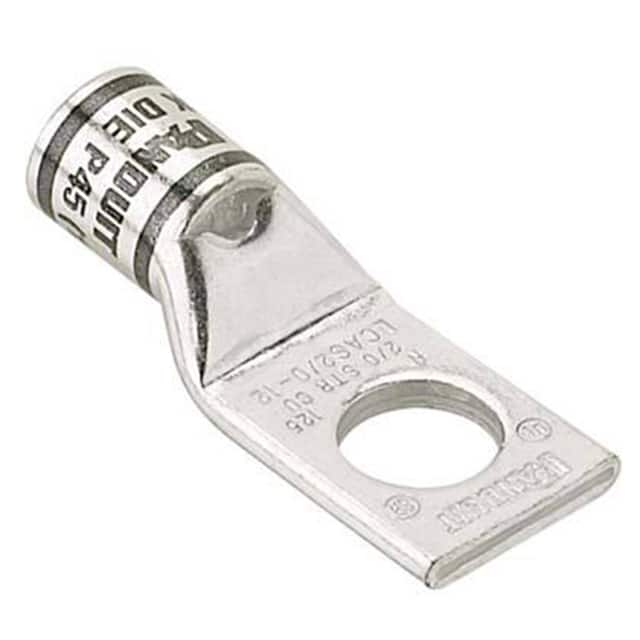

One-hole, short barrel with window lug, #2 AWG wire, 3/8 stud hole.

Copper Conductor Size (AWG)	2/0
Copper Conductor Size (kcmil)	133.1
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Short Barrel Length with Inspection Window
Barrel Length (In.)	0.57
Barrel Length (mm)	14.5
Tongue Type	Standard
Tongue Width (In.)	0.66
Tongue Width (mm)	16.8
Tongue Angle	Straight
Tongue Thickness (In.)	0.1
Tongue Thickness (mm)	2.5
Overall Length (In.)	1.66
Overall Length (mm)	42.2
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (In.)	42,952
Wire Strip Length (mm)	15.9
Part Features	Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3.
