Panduit lugs [LCAS4/0-56-X], PAE998

Name: Panduit lugs [LCAS4/0-56-X], PAE998
Brand: Panduit
SKU: PAE998
Availability: InStock

Mã kho: PAE998

Mã nhà sản xuất: LCAS4/0-56-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

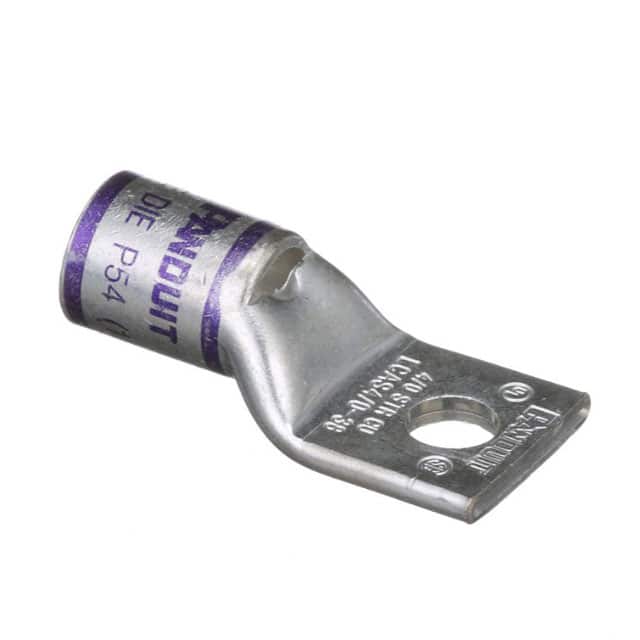

One-hole, short barrel with window lug, 4/0 AWG wire, 5/16 stud hole.

Copper Conductor Size (AWG)	4/0
Copper Conductor Size (kcmil)	212
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Barrel Type	Short Barrel Length with Inspection Window
Barrel Length (In.)	0.91
Barrel Length (mm)	23.1
Tongue Type	Standard
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	Straight
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	2.1
Overall Length (mm)	53.3
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3.
