Panduit lugs [LCAX1/0-12F-X], PAD262

Name: Panduit lugs [LCAX1/0-12F-X], PAD262
Brand: Panduit
SKU: PAD262
Price: 251270.0 VND
Availability: InStock

Mã kho: PAD262

Mã nhà sản xuất: LCAX1/0-12F-X

Tên nhà sản xuất: Panduit

251.270₫ - 251.270₫

251.270₫

251.270₫ - 251.270₫

251.270₫

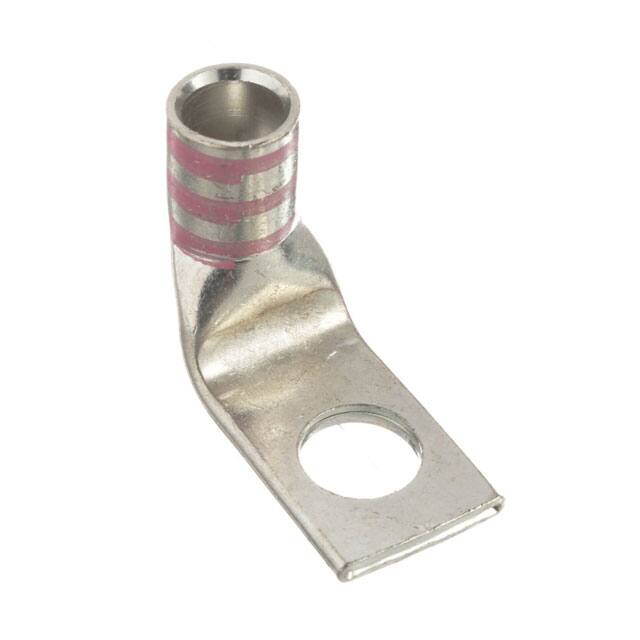

One-hole, flex lug, 1/0 AWG wire, 1/2 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.72
Barrel Length (mm)	18.3
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Angle	90°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.91
Overall Length (mm)	48.5
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	42,828
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
