Panduit lugs [LCAX1/0-14H-X], PAD265

Name: Panduit lugs [LCAX1/0-14H-X], PAD265
Brand: Panduit
SKU: PAD265
Price: 225480.0 VND
Availability: InStock

Mã kho: PAD265

Mã nhà sản xuất: LCAX1/0-14H-X

Tên nhà sản xuất: Panduit

225.480₫ - 225.480₫

225.480₫

225.480₫ - 225.480₫

225.480₫

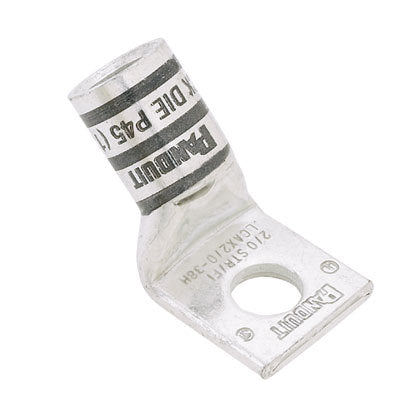

One-hole, flex lug, 1/0 AWG wire, 1/4 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.72
Barrel Length (mm)	18.3
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Angle	45°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.58
Overall Length (mm)	40.1
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	42,828
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
