Panduit lugs [LCAX1/0-38H-X], PAD267

Name: Panduit lugs [LCAX1/0-38H-X], PAD267
Brand: Panduit
SKU: PAD267
Price: 227380.0 VND
Availability: InStock

Mã kho: PAD267

Mã nhà sản xuất: LCAX1/0-38H-X

Tên nhà sản xuất: Panduit

227.380₫ - 227.380₫

227.380₫

227.380₫ - 227.380₫

227.380₫

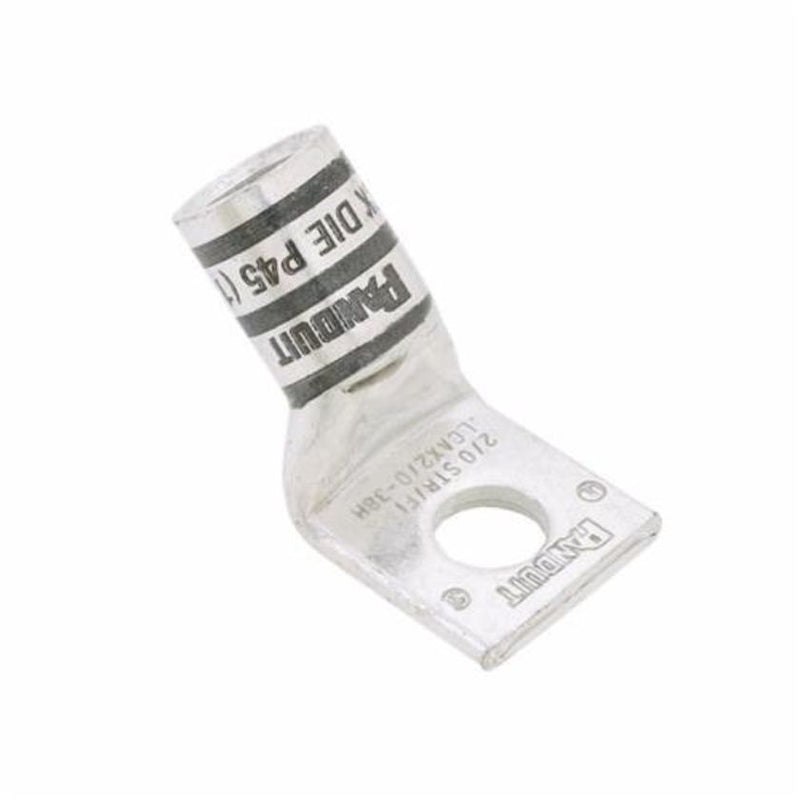

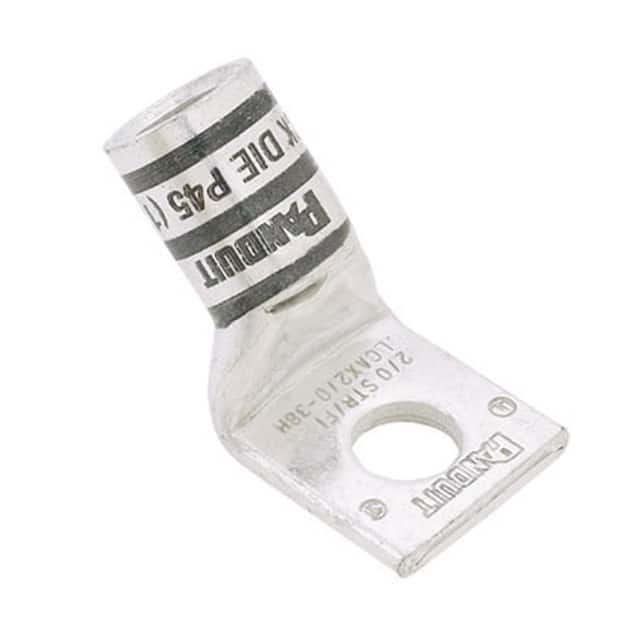

One-hole, flex lug, 1/0 AWG wire, 3/8 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.72
Barrel Length (mm)	18.3
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Angle	45°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.64
Overall Length (mm)	41.6
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	42,828
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
