Panduit lugs [LCAX1-14H-X], PAD256

Name: Panduit lugs [LCAX1-14H-X], PAD256
Brand: Panduit
SKU: PAD256
Price: 191860.0 VND
Availability: InStock

Mã kho: PAD256

Mã nhà sản xuất: LCAX1-14H-X

Tên nhà sản xuất: Panduit

191.860₫ - 191.860₫

191.860₫

191.860₫ - 191.860₫

191.860₫

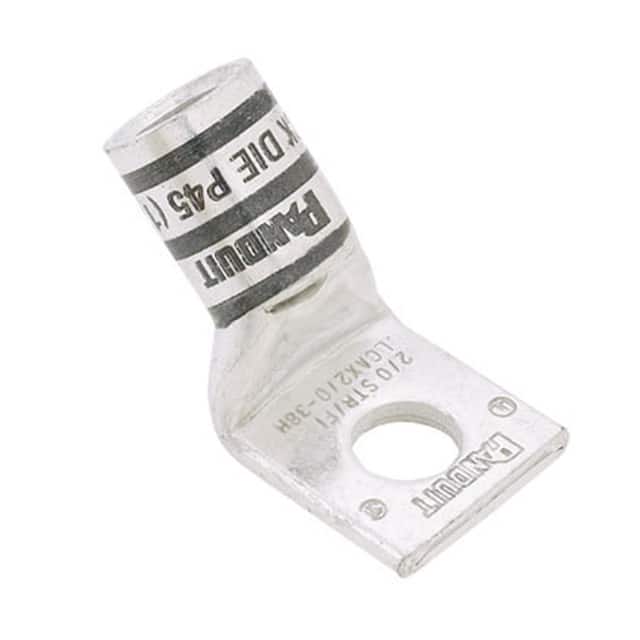

One-hole, flex lug, #1 AWG wire, 1/4 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.66
Barrel Length (mm)	16.8
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.76
Tongue Width (mm)	19.3
Tongue Angle	45°
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	1.43
Overall Length (mm)	36.3
Color Code	Green
Panduit Die Index Number	P37
Burndy Die Index Number	11
Wire Strip Length (In.)	42,828
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
