Panduit One-hole, flex lug, 2/0 AWG wire, 5/8 stud hole., 90° angle tongue. [LCAX2/0-58F-X]; PAM858

Name: Panduit One-hole, flex lug, 2/0 AWG wire, 5/8 stud hole., 90° angle tongue. [LCAX2/0-58F-X]; PAM858
Brand: Panduit
SKU: PAM858
Price: 568610.0 VND
Availability: InStock

Mã kho: PAM858

Mã nhà sản xuất: LCAX2/0-58F-X

Tên nhà sản xuất: Panduit

568.610₫ - 568.610₫

568.610₫

568.610₫ - 568.610₫

568.610₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX2/0-58F-X

MÔ TẢ SẢN PHẨM

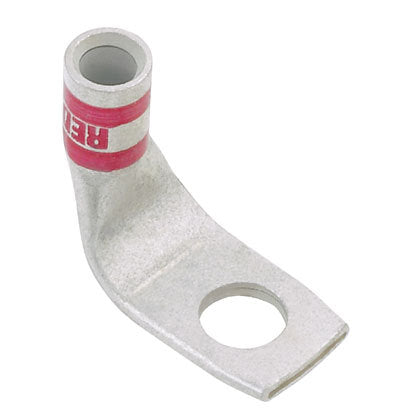

One-hole, flex lug, 2/0 AWG wire, 5/8 stud hole., 90° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.83
Barrel Length (mm)	21.1
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Angle	90°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.27
Overall Length (mm)	57.7
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
Wire Strip Length (In.)	42,954
Wire Strip Length (mm)	22.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
