Panduit lugs [LCAX250-14F-X], PAD296

Name: Panduit lugs [LCAX250-14F-X], PAD296
Brand: Panduit
SKU: PAD296
Availability: InStock

Mã kho: PAD296

Mã nhà sản xuất: LCAX250-14F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

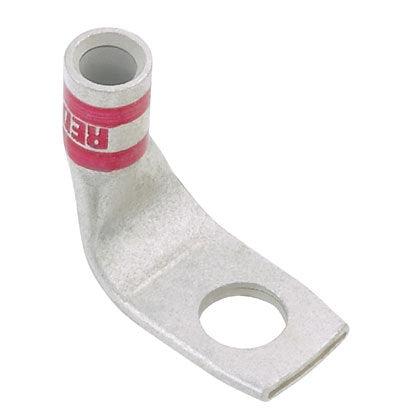

One-hole, flex lug, 250 kcmil cable, 1/4 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.03
Barrel Length (mm)	26.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	90°
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	1.9
Overall Length (mm)	48.3
Color Code	Yellow
Panduit Die Index Number	P62
Burndy Die Index Number	16
Wire Strip Length (In.)	10,625
Wire Strip Length (mm)	27
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
