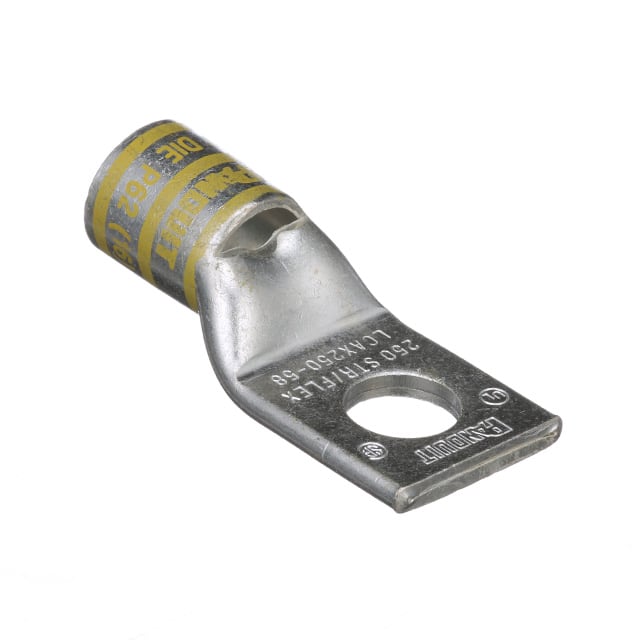

Panduit lugs [LCAX250-58-X], PAD306

Name: Panduit lugs [LCAX250-58-X], PAD306
Brand: Panduit
SKU: PAD306
Price: 379650.0 VND
Availability: InStock

Mã kho: PAD306

Mã nhà sản xuất: LCAX250-58-X

Tên nhà sản xuất: Panduit

379.650₫ - 379.650₫

379.650₫

379.650₫ - 379.650₫

379.650₫

One-hole, flex lug, 250 kcmil cable, 5/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.03
Barrel Length (mm)	26.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	2.89
Overall Length (mm)	73.4
Color Code	Yellow
Panduit Die Index Number	P62
Burndy Die Index Number	16
Wire Strip Length (In.)	10,625
Wire Strip Length (mm)	27
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
