Panduit lugs [LCAX3/0-56F-X], PAD319

Name: Panduit lugs [LCAX3/0-56F-X], PAD319
Brand: Panduit
SKU: PAD319
Price: 340770.0 VND
Availability: InStock

Mã kho: PAD319

Mã nhà sản xuất: LCAX3/0-56F-X

Tên nhà sản xuất: Panduit

340.770₫ - 340.770₫

340.770₫

340.770₫ - 340.770₫

340.770₫

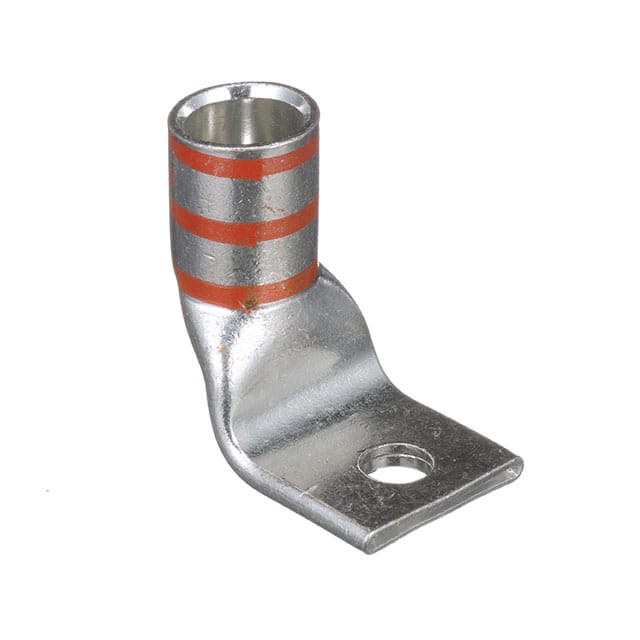

One-hole, flex lug, 3/0 AWG wire, 5/16 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.91
Barrel Length (mm)	23.1
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	90°
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	1.77
Overall Length (mm)	45
Color Code	Orange
Panduit Die Index Number	P50
Burndy Die Index Number	14
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
