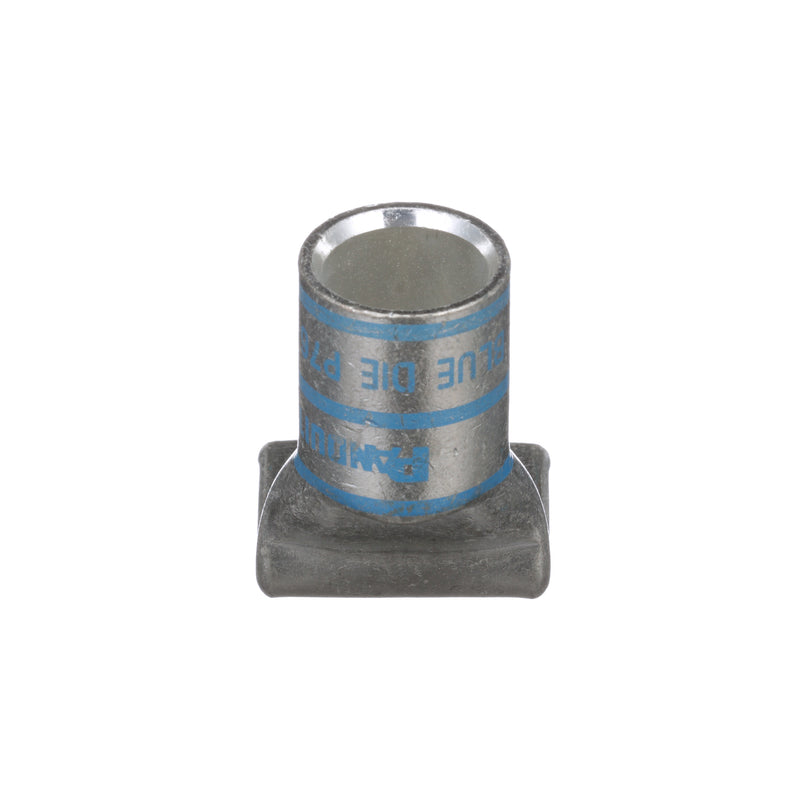

Panduit lugs [LCAX350-12F-6], PAD330

Name: Panduit lugs [LCAX350-12F-6], PAD330
Brand: Panduit
SKU: PAD330
Price: 781180.0 VND
Availability: InStock

Mã kho: PAD330

Mã nhà sản xuất: LCAX350-12F-6

Tên nhà sản xuất: Panduit

781.180₫ - 781.180₫

781.180₫

781.180₫ - 781.180₫

781.180₫

One-hole, flex lug, 350 kcmil cable, 1/2 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.29
Barrel Length (mm)	32.8
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	90°
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	2.48
Overall Length (mm)	63
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1,375
Wire Strip Length (mm)	34.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
