Panduit lugs [LCAX350-38-6], PAD332
Panduit lugs [LCAX350-38-6], PAD332

Panduit lugs [LCAX350-38-6], PAD332

Mã kho: PAD332
Mã nhà sản xuất: LCAX350-38-6
Tên nhà sản xuất: Panduit
525.560₫ - 525.560₫
525.560₫
525.560₫ - 525.560₫
525.560₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX350-38-6

MÔ TẢ SẢN PHẨM

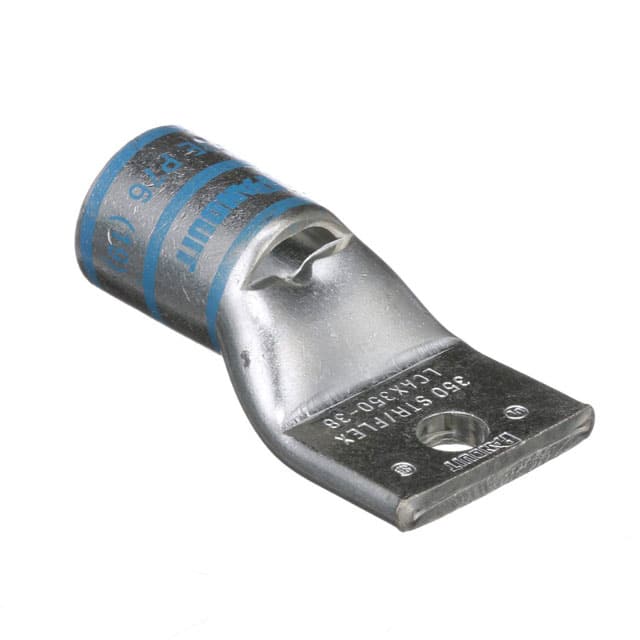

The LCAX350-38-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material help

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.) 0.84
Inside Diameter (mm) 21.33
Outer Diameter (In.) 1.06
Outer Diameter (mm) 26.92
Product Type Tin-Plated Copper Compression Connectors - Lugs
Lug Type 1 Stud Hole Lug
Base Material Copper
Class G Copper Flex Conductor Size (kcmil) 350
Class H Copper Flex Conductor Size (kcmil) 350
Class I Copper Flex Conductor Size (kcmil) 350
Class K Copper Flex Conductor Size (kcmil) 350
Class M Copper Flex Conductor Size (kcmil) 350
DLO Copper Flex Conductor Size (kcmil) 373.7
Sub Brand Pan-Lug™
Stud Hole Size (In.) 3/8
Stud Hole Size (mm) 9.5
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 1.29
Barrel Length (mm) 32.8
Tongue Type Standard
Tongue Width (In.) 1.54
Tongue Width (mm) 39.1
Tongue Angle Straight
Tongue Thickness (In.) 0.22
Tongue Thickness (mm) 5.6
Overall Length (In.) 2.93
Overall Length (mm) 74.4
Finish/Coating Tin-Plated
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C) 90
Maximum Voltage (kV) 35
Color Code Blue
Panduit Die Index Number P76
Burndy Die Index Number 19
T & B Die Index Number 19
Wire Strip Length (In.) 1-3/8
Wire Strip Length (mm) 34.9
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
