Panduit lugs [LCAX350-58-6], PAC286

Name: Panduit lugs [LCAX350-58-6], PAC286
Brand: Panduit
SKU: PAC286
Price: 598310.0 VND
Availability: InStock

Mã kho: PAC286

Mã nhà sản xuất: LCAX350-58-6

Tên nhà sản xuất: Panduit

598.310₫ - 598.310₫

598.310₫

598.310₫ - 598.310₫

598.310₫

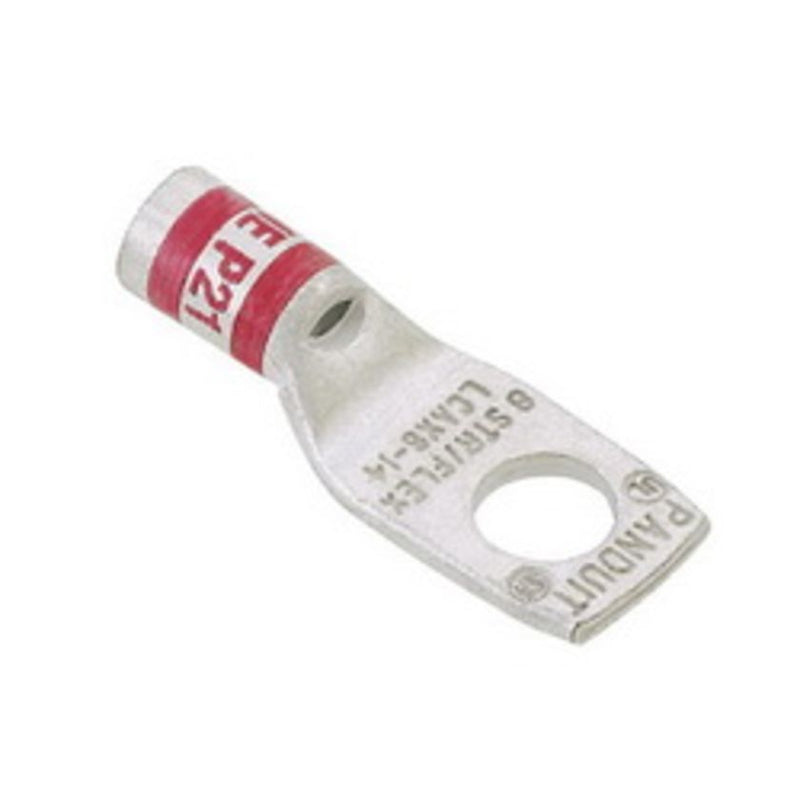

One-hole, flex lug, 350 kcmil cable, 5/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.29
Barrel Length (mm)	32.8
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	3.3
Overall Length (mm)	83.8
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1,375
Wire Strip Length (mm)	34.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
