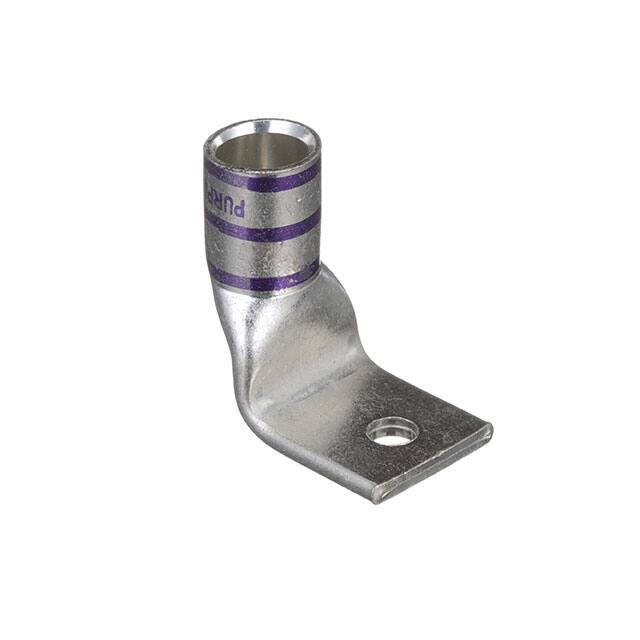

Panduit lugs [LCAX4/0-56F-X], PAD356

Mã kho: PAD356
Mã nhà sản xuất: LCAX4/0-56F-X
Tên nhà sản xuất: Panduit
Original price 376.020₫ - Original price 376.020₫
Original price
376.020₫
376.020₫ - 376.020₫
Current price 376.020₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX4/0-56F-X

MÔ TẢ SẢN PHẨM

One-hole, flex lug, 4/0 AWG wire, 5/16 stud hole., 90° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.491
Stud Hole Size (mm) 7.9
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.03
Barrel Length (mm) 26.2
Tongue Type Standard Tongue Width
Tongue Width (In.) 1.19
Tongue Width (mm) 30.2
Tongue Angle 90°
Tongue Thickness (In.) 0.16
Tongue Thickness (mm) 4.1
Overall Length (In.) 2.07
Overall Length (mm) 52.6
Color Code Purple
Panduit Die Index Number P54
Burndy Die Index Number 15
Wire Strip Length (In.) 10,625
Wire Strip Length (mm) 27
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
