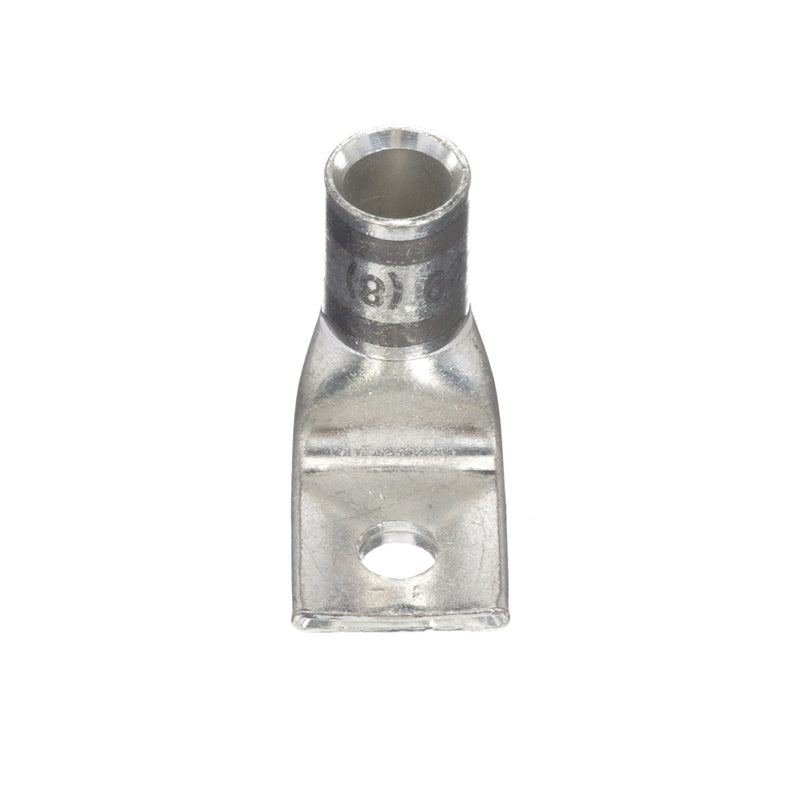

Panduit lugs [LCAX4-10F-L], PAD340

Name: Panduit lugs [LCAX4-10F-L], PAD340
Brand: Panduit
SKU: PAD340
Availability: InStock

Mã kho: PAD340

Mã nhà sản xuất: LCAX4-10F-L

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flex lug, #4 AWG wire, #10 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.53
Barrel Length (mm)	13.5
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Tongue Angle	90°
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	1.03
Overall Length (mm)	26.2
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	42,952
Wire Strip Length (mm)	15.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
