Panduit lugs [LCAX450-58-6], PAD362

Name: Panduit lugs [LCAX450-58-6], PAD362
Brand: Panduit
SKU: PAD362
Price: 913710.0 VND
Availability: InStock

Mã kho: PAD362

Mã nhà sản xuất: LCAX450-58-6

Tên nhà sản xuất: Panduit

913.710₫ - 913.710₫

913.710₫

913.710₫ - 913.710₫

913.710₫

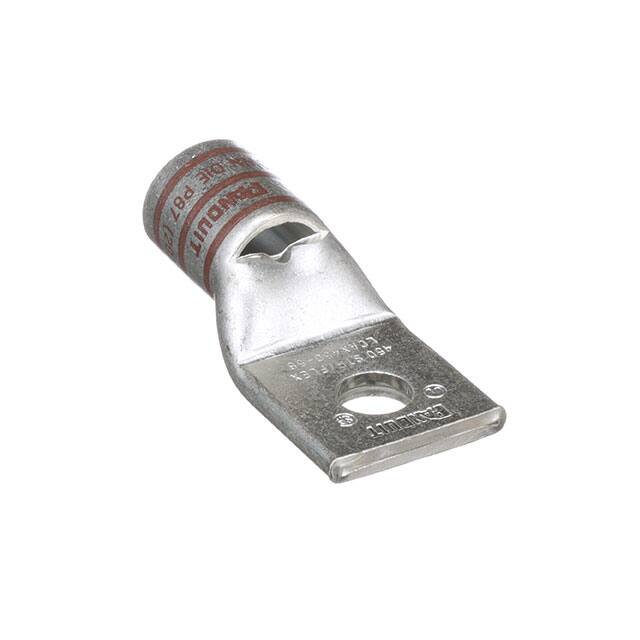

One-hole, flex lug, 450 kcmil cable, 5/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.4
Barrel Length (mm)	35.6
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.7
Tongue Width (mm)	43.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	3.73
Overall Length (mm)	94.7
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	14,375
Wire Strip Length (mm)	36.5
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
