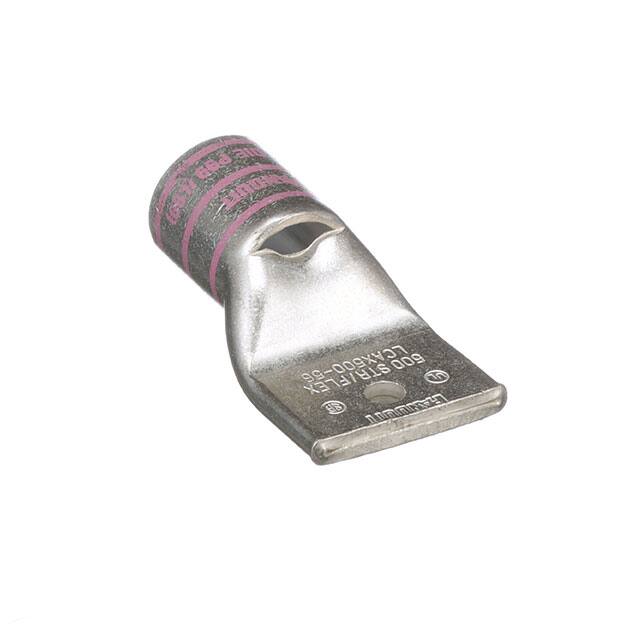

Panduit lugs [LCAX500-56-6], PAD371

Name: Panduit lugs [LCAX500-56-6], PAD371
Brand: Panduit
SKU: PAD371
Price: 1796470.0 VND
Availability: InStock

Mã kho: PAD371

Mã nhà sản xuất: LCAX500-56-6

Tên nhà sản xuất: Panduit

1.796.470₫ - 1.796.470₫

1.796.470₫

1.796.470₫ - 1.796.470₫

1.796.470₫

One-hole, flex lug, 500 kcmil cable, 5/16 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.48
Barrel Length (mm)	37.6
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.89
Tongue Width (mm)	48
Tongue Angle	Straight
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	3.27
Overall Length (mm)	85.6
Color Code	Pink
Panduit Die Index Number	P99
Burndy Die Index Number	L99
Wire Strip Length (In.)	1.5625
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
