Panduit lugs [LCAX500-58F-6], PAD374

Name: Panduit lugs [LCAX500-58F-6], PAD374
Brand: Panduit
SKU: PAD374
Price: 2567680.0 VND
Availability: InStock

Mã kho: PAD374

Mã nhà sản xuất: LCAX500-58F-6

Tên nhà sản xuất: Panduit

2.567.680₫ - 2.567.680₫

2.567.680₫

2.567.680₫ - 2.567.680₫

2.567.680₫

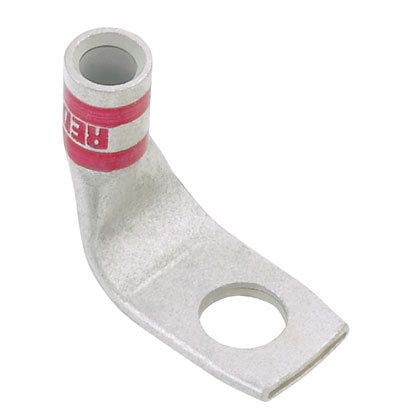

One-hole, flex lug, 500 kcmil cable, 5/8 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.48
Barrel Length (mm)	37.6
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.89
Tongue Width (mm)	48
Tongue Angle	90°
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	3.37
Overall Length (mm)	85.6
Color Code	Pink
Panduit Die Index Number	P99
Burndy Die Index Number	L99
Wire Strip Length (In.)	1.5625
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
