Panduit lugs [LCAX6-10F-L], PAD377

Name: Panduit lugs [LCAX6-10F-L], PAD377
Brand: Panduit
SKU: PAD377
Price: 103350.0 VND
Availability: InStock

Mã kho: PAD377

Mã nhà sản xuất: LCAX6-10F-L

Tên nhà sản xuất: Panduit

103.350₫ - 103.350₫

103.350₫

103.350₫ - 103.350₫

103.350₫

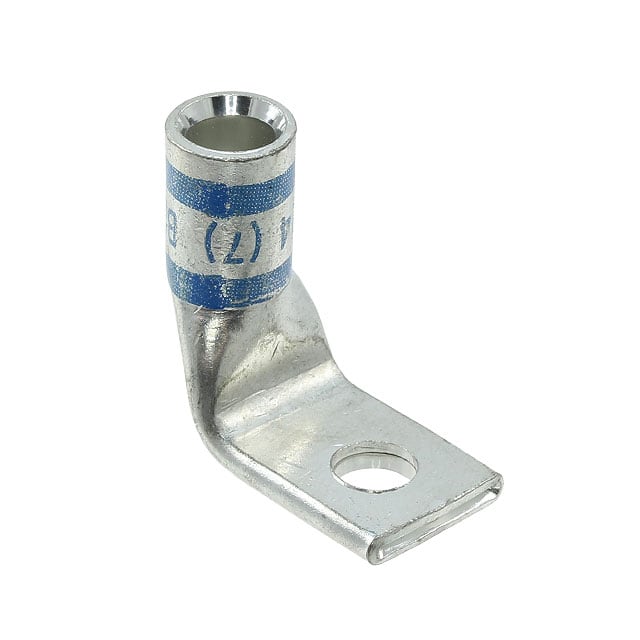

One-hole, flex lug, #6 AWG wire, #10 stud hole., 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.48
Barrel Length (mm)	12.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.45
Tongue Width (mm)	11.4
Tongue Angle	90°
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	0.99
Overall Length (mm)	25.2
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	42,614
Wire Strip Length (mm)	14.3
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
