Panduit lugs [LCAX6-56H-L], PAD384

Name: Panduit lugs [LCAX6-56H-L], PAD384
Brand: Panduit
SKU: PAD384
Price: 136970.0 VND
Availability: InStock

Mã kho: PAD384

Mã nhà sản xuất: LCAX6-56H-L

Tên nhà sản xuất: Panduit

136.970₫ - 136.970₫

136.970₫

136.970₫ - 136.970₫

136.970₫

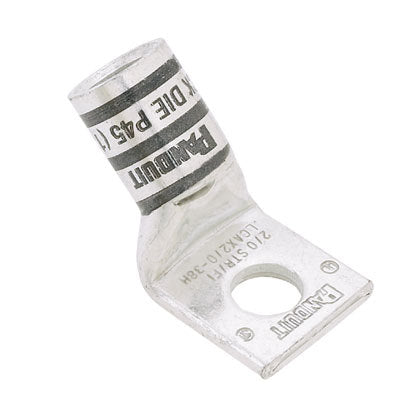

One-hole, flex lug, #6 AWG wire, 5/16 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.48
Barrel Length (mm)	12.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.56
Tongue Width (mm)	14.2
Tongue Angle	45°
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.8
Overall Length (In.)	1.26
Overall Length (mm)	32
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	42,614
Wire Strip Length (mm)	14.3
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
