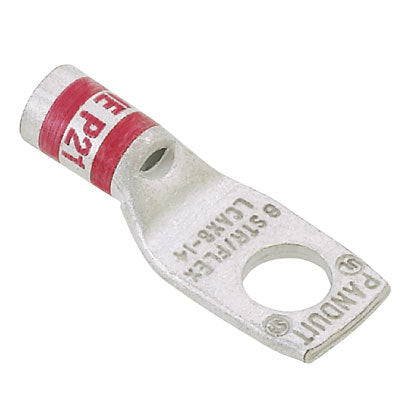

Panduit lugs [LCAX650-58-6], PAD393

Name: Panduit lugs [LCAX650-58-6], PAD393
Brand: Panduit
SKU: PAD393
Price: 1511640.0 VND
Availability: InStock

Mã kho: PAD393

Mã nhà sản xuất: LCAX650-58-6

Tên nhà sản xuất: Panduit

1.511.640₫ - 1.511.640₫

1.511.640₫

1.511.640₫ - 1.511.640₫

1.511.640₫

One-hole, flex lug, 650 kcmil cable, 5/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.45
Barrel Length (mm)	36.8
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.95
Tongue Width (mm)	49.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.3
Tongue Thickness (mm)	7.6
Overall Length (In.)	4.2
Overall Length (mm)	106.7
Color Code	Black
Panduit Die Index Number	P106
Burndy Die Index Number	24
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
