Panduit lugs [LCAX8-10-L], PAC300

Name: Panduit lugs [LCAX8-10-L], PAC300
Brand: Panduit
SKU: PAC300
Price: 47940.0 VND
Availability: InStock

Mã kho: PAC300

Mã nhà sản xuất: LCAX8-10-L

Tên nhà sản xuất: Panduit

47.940₫ - 47.940₫

47.940₫

47.940₫ - 47.940₫

47.940₫

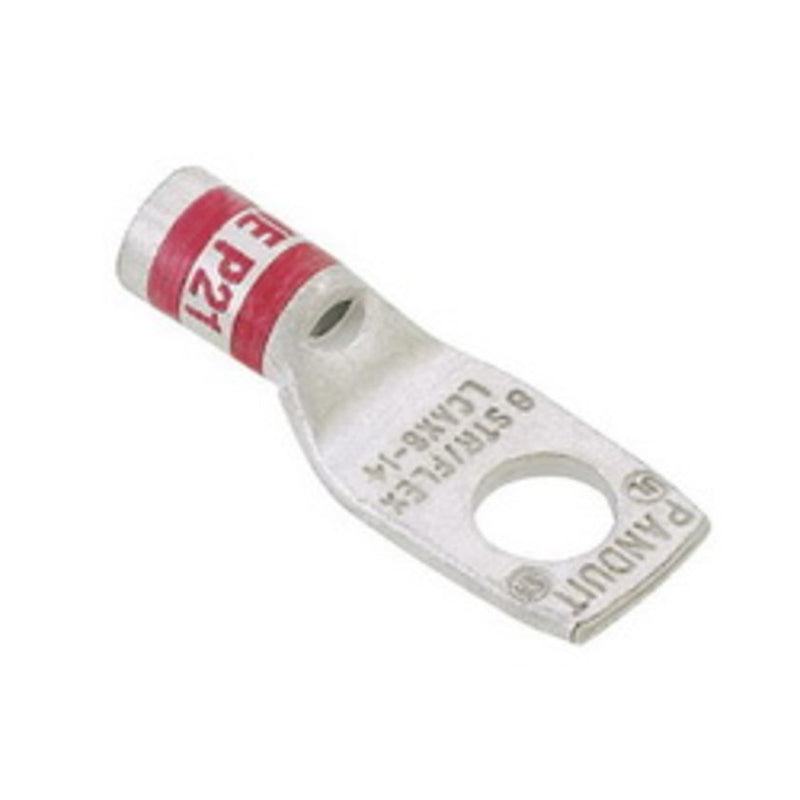

One-hole, flex lug, #8 AWG wire, #10 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.42
Barrel Length (mm)	10.7
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.41
Tongue Width (mm)	10.4
Tongue Angle	Straight
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	1.11
Overall Length (mm)	28.2
Color Code	Red
Panduit Die Index Number	P21
Burndy Die Index Number	49
Wire Strip Length (In.)	42,767
Wire Strip Length (mm)	12.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
