Panduit lugs [LCAX8-12-L], PAE721

Mã kho: PAE721
Mã nhà sản xuất: LCAX8-12-L
Tên nhà sản xuất: Panduit
Original price 170.870₫ - Original price 170.870₫
Original price
170.870₫
170.870₫ - 170.870₫
Current price 170.870₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX8-12-L

MÔ TẢ SẢN PHẨM

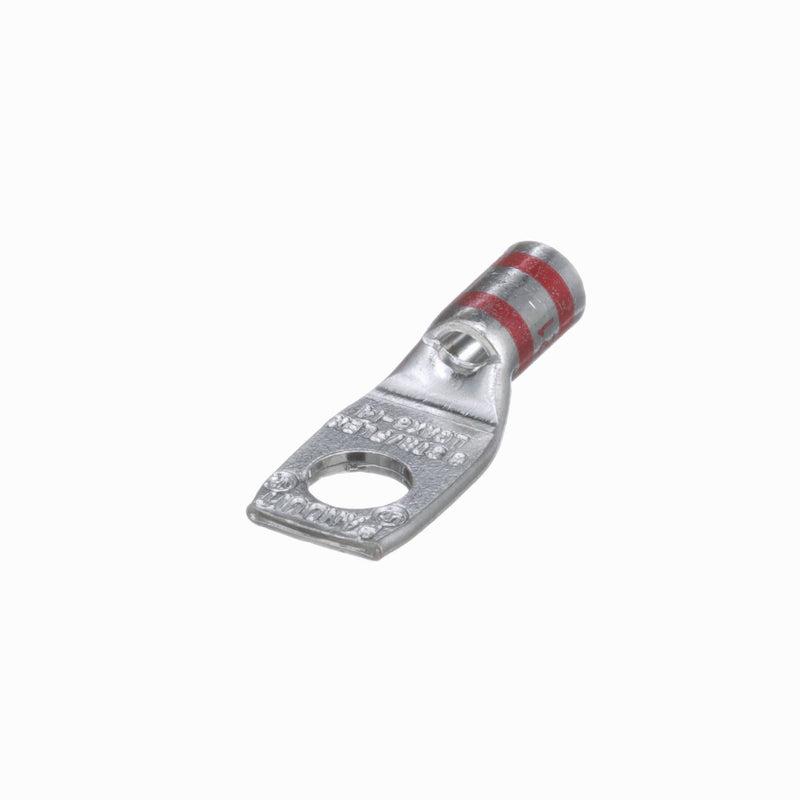

Copper Compression Lug, 1 Hole, #8 AWG Flex Conductor, Standard Barrel, 1/2" Stud

_THÔNG SỐ KỸ THUẬT:

Lug Type 1 Stud Hole Lug
Sub Brand PAN LUG
Stud Hole Size (mm) 12.7
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 0.42
Barrel Length (mm) 10.668
Tongue Type Standard
Tongue Width (In.) 0.75
Tongue Width (mm) 19.05
Tongue Angle Straight
Tongue Thickness (In.) 0.12
Tongue Thickness (mm) 3.048
Overall Length (In.) 1.65
Overall Length (mm) 41.91
Finish/Coating Tin-Plated
Standards Met UL Listed and CSA Certified, 90° C temperature rating, when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV) 35
Color Code Red
Panduit Die Index Number P21
Burndy Die Index Number NA
T & B Die Index Number 21
Wire Strip Length (mm) 12.7
