Panduit lugs [LCAXN3/0-12-X], PAE735

Name: Panduit lugs [LCAXN3/0-12-X], PAE735
Brand: Panduit
SKU: PAE735
Price: 527400.0 VND
Availability: InStock

Mã kho: PAE735

Mã nhà sản xuất: LCAXN3/0-12-X

Tên nhà sản xuất: Panduit

527.400₫ - 527.400₫

527.400₫

527.400₫ - 527.400₫

527.400₫

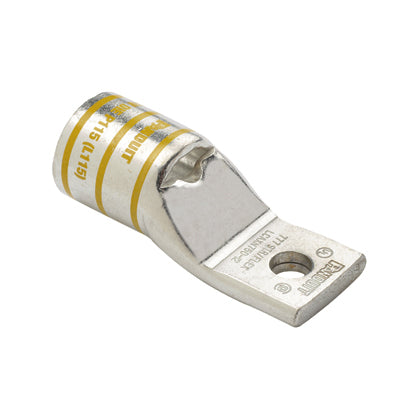

Copper Compression Lug, 1 Hole, Flex, 3/0 AWG, Narrow Tongue, 1/2" (12.7mm) Stud

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Tongue Type	Narrow Tongue Width
Tongue Angle	Straight
Tongue Thickness (In.)	0.18
Tongue Thickness (mm)	4.5
Tongue Width (In.)	0.71
Tongue Width (mm)	18
Overall Length (In.)	2.68
Overall Length (mm)	68.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.19
Barrel Length (mm)	30.2
Wire Strip Length (In.)	1.25
Wire Strip Length (mm)	31.7
