Panduit lugs [LCAXN500-38-6], PAE746

Name: Panduit lugs [LCAXN500-38-6], PAE746
Brand: Panduit
SKU: PAE746
Price: 2138310.0 VND
Availability: InStock

Mã kho: PAE746

Mã nhà sản xuất: LCAXN500-38-6

Tên nhà sản xuất: Panduit

2.138.310₫ - 2.138.310₫

2.138.310₫

2.138.310₫ - 2.138.310₫

2.138.310₫

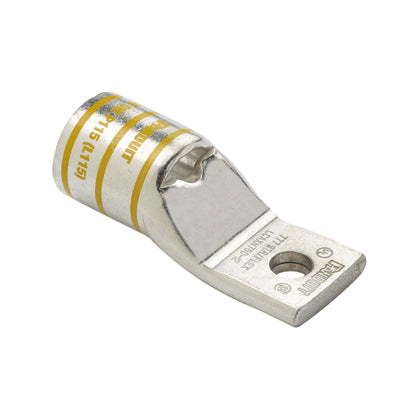

Copper Compression Lug, 1 Hole, Flex, 500 kcmil, Narrow Tongue, 3/8" (9.5mm) Stud

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Size (mm)	9.525
Tongue Type	Narrow Tongue Width
Tongue Angle	Straight
Tongue Thickness (In.)	0.32
Tongue Thickness (mm)	8.1
Tongue Width (In.)	1.3
Tongue Width (mm)	33
Overall Length (In.)	3.84
Overall Length (mm)	97.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.4
Wire Strip Length (In.)	1.93
Wire Strip Length (mm)	49.2
