Panduit lugs [LCB1/0-12-X], PAC312

Name: Panduit lugs [LCB1/0-12-X], PAC312
Brand: Panduit
SKU: PAC312
Price: 179130.0 VND
Availability: InStock

Mã kho: PAC312

Mã nhà sản xuất: LCB1/0-12-X

Tên nhà sản xuất: Panduit

179.130₫ - 179.130₫

179.130₫

179.130₫ - 179.130₫

179.130₫

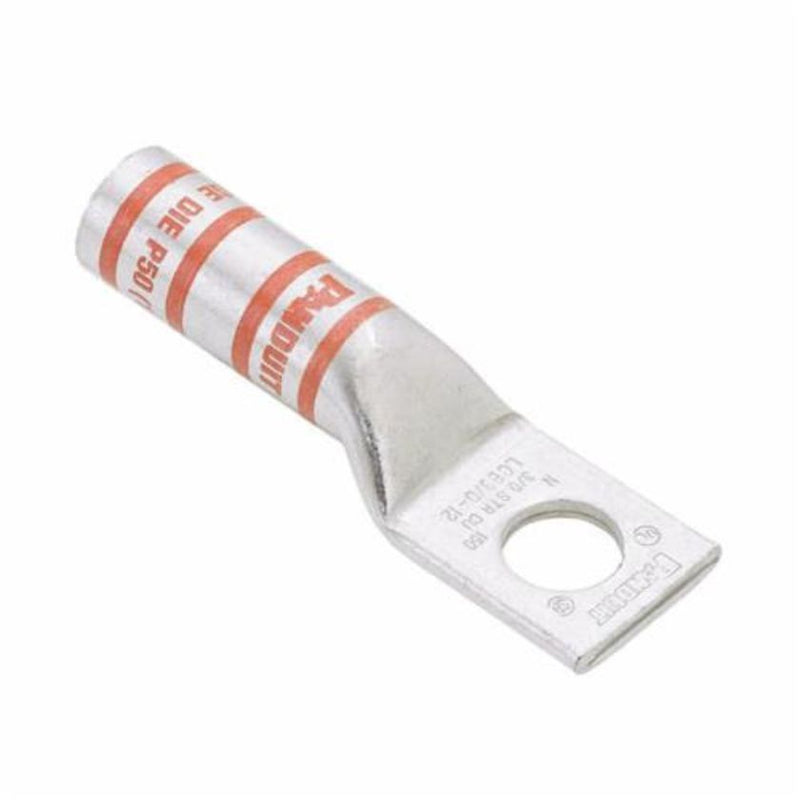

One-hole, long barrel lug, 1/0 AWG wire, 1/2 stud hole.

Copper Conductor Size (AWG)	1/0
Copper Conductor Size (kcmil)	106
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard
Tongue Width (In.)	0.8
Tongue Width (mm)	20.3
Tongue Angle	Straight
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	2.92
Overall Length (mm)	74.2
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
