Panduit lugs [LCB1-38-E], PAD413

Name: Panduit lugs [LCB1-38-E], PAD413
Brand: Panduit
SKU: PAD413
Price: 175650.0 VND
Availability: InStock

Mã kho: PAD413

Mã nhà sản xuất: LCB1-38-E

Tên nhà sản xuất: Panduit

175.650₫ - 175.650₫

175.650₫

175.650₫ - 175.650₫

175.650₫

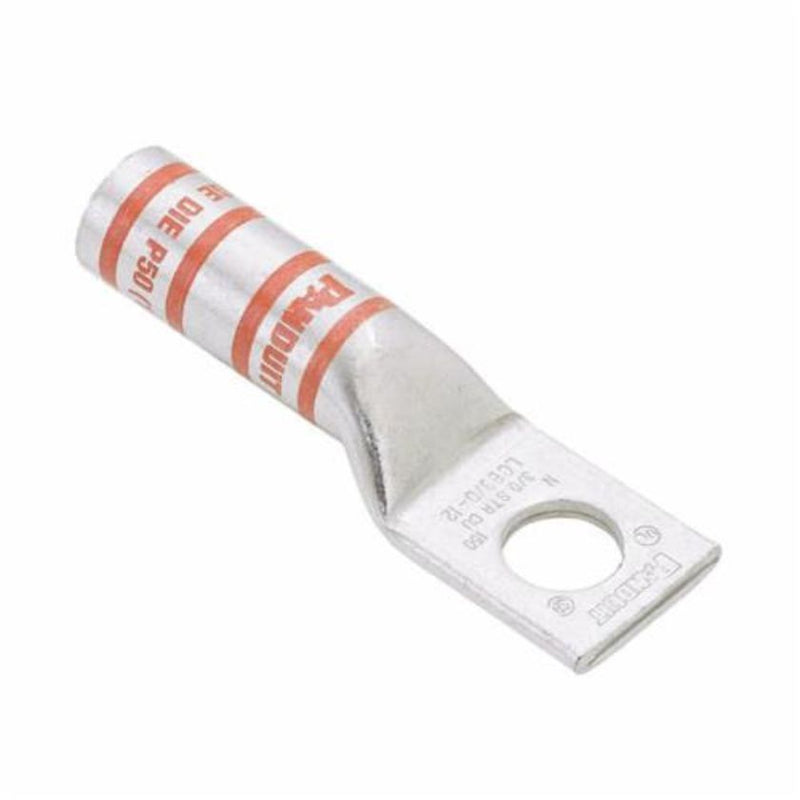

One-hole, long barrel lug, #1 AWG wire, 3/8 stud hole, standard package.

Copper Conductor Size (AWG)	#1
Copper Conductor Size (kcmil)	84
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.36
Barrel Length (mm)	34.5
Tongue Type	Standard
Tongue Width (In.)	0.7
Tongue Width (mm)	17.8
Tongue Angle	Straight
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	2.57
Overall Length (mm)	65.3
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Green
Panduit Die Index Number	P37
Burndy Die Index Number	11
Wire Strip Length (In.)	1.44
Wire Strip Length (mm)	36.5
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
