Panduit lugs [LCB1500-12WF-1], PAD419

Name: Panduit lugs [LCB1500-12WF-1], PAD419
Brand: Panduit
SKU: PAD419
Availability: InStock

Mã kho: PAD419

Mã nhà sản xuất: LCB1500-12WF-1

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

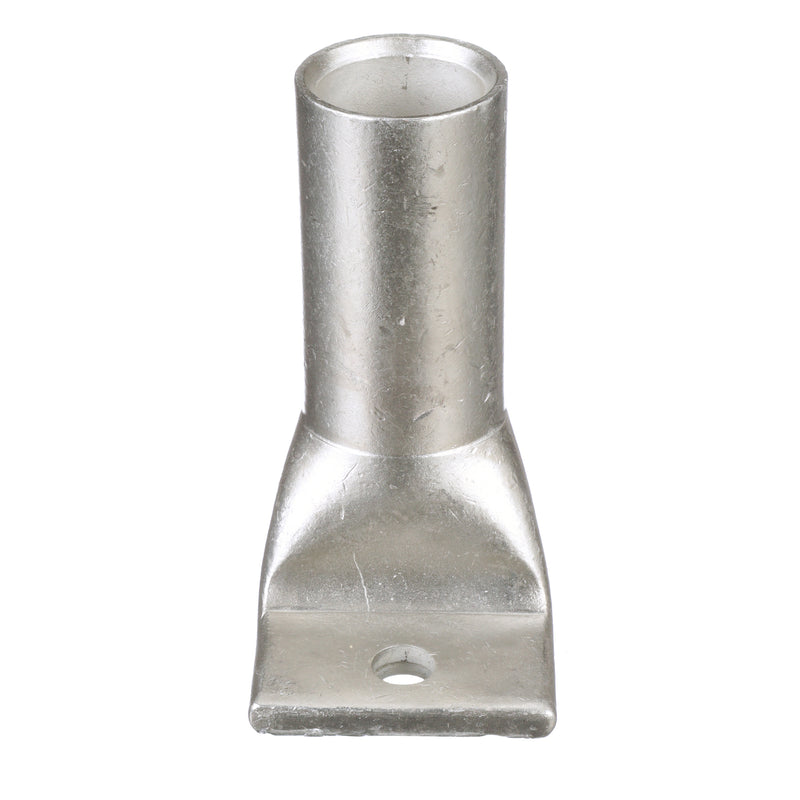

Copper Compression Lug, 1 Hole, 1500 kcmil, Long Barrel, 1/2 (12.7mm) Stud, 90° Bend

Product Type	Tin-Plated Copper Compression Connectors-Lug
Lug Type	1 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.5
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel with Inspection Window
Barrel Length (In.)	3.32
Barrel Length (mm)	84
Tongue Type	Standard
Tongue Width (In.)	2.68
Tongue Width (mm)	68.072
Tongue Angle	90°
Tongue Thickness (In.)	0.38
Tongue Thickness (mm)	9.652
Overall Length (In.)	3.55
Overall Length (mm)	90.17
Finish/Coating	Tin-Plated
Standards Met	c UL us Listed , 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Green
Panduit Die Index Number	P150
Burndy Die Index Number	31
T & B Die Index Number	150
Wire Strip Length (In.)	3-3/8
Wire Strip Length (mm)	85.725
