Panduit lugs [LCB2/0-38H-X], PAC339

Name: Panduit lugs [LCB2/0-38H-X], PAC339
Brand: Panduit
SKU: PAC339
Availability: InStock

Mã kho: PAC339

Mã nhà sản xuất: LCB2/0-38H-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

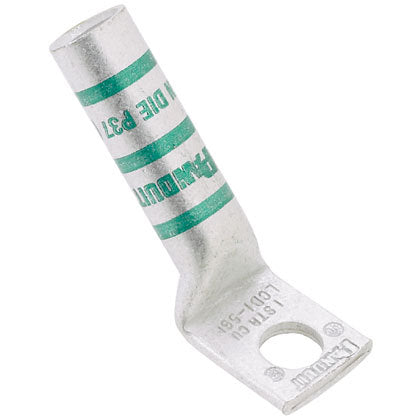

One-hole, long barrel lug, 2/0 AWG wire, 3/8 stud hole, 45° angle tongue.

Copper Conductor Size (AWG)	2/0
Copper Conductor Size (kcmil)	133.1
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Angle	45°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.31
Overall Length (mm)	58.7
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
