Panduit lugs [LCB2-12-Q], PAC329

Name: Panduit lugs [LCB2-12-Q], PAC329
Brand: Panduit
SKU: PAC329
Price: 285110.0 VND
Availability: InStock

Mã kho: PAC329

Mã nhà sản xuất: LCB2-12-Q

Tên nhà sản xuất: Panduit

285.110₫ - 285.110₫

285.110₫

285.110₫ - 285.110₫

285.110₫

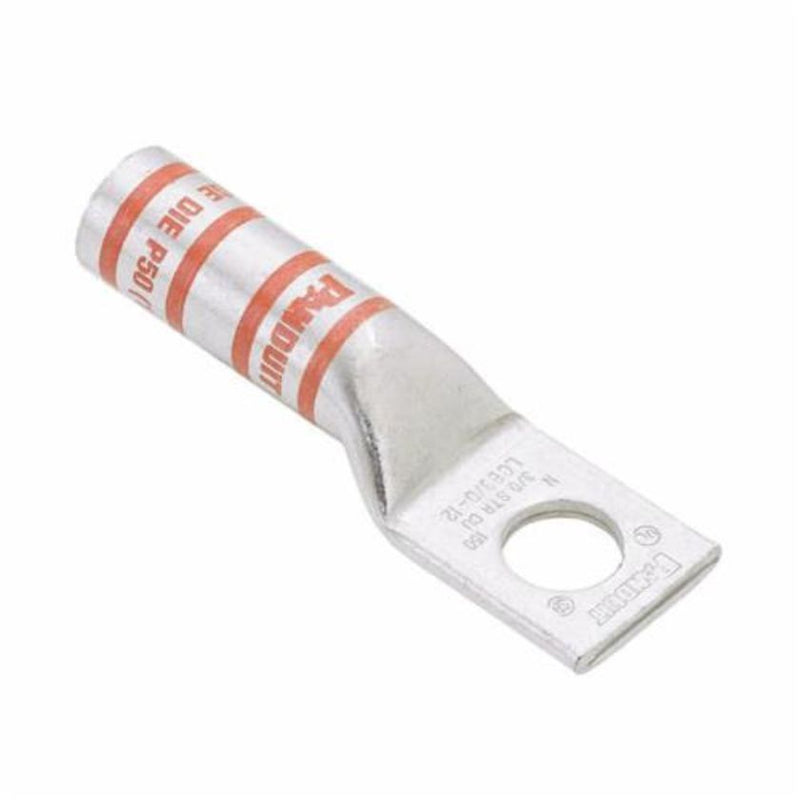

One-hole, long barrel lug, #2 AWG wire, 1/2 stud hole.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	66.36
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.16
Barrel Length (mm)	29.5
Tongue Type	Standard
Tongue Width (In.)	0.75
Tongue Width (mm)	19.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	2.58
Overall Length (mm)	65.5
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (In.)	1.25
Wire Strip Length (mm)	31.8
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
