Panduit lugs [LCB2000-12W-1], PAD423

Mã kho: PAD423
Mã nhà sản xuất: LCB2000-12W-1
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCB2000-12W-1

MÔ TẢ SẢN PHẨM

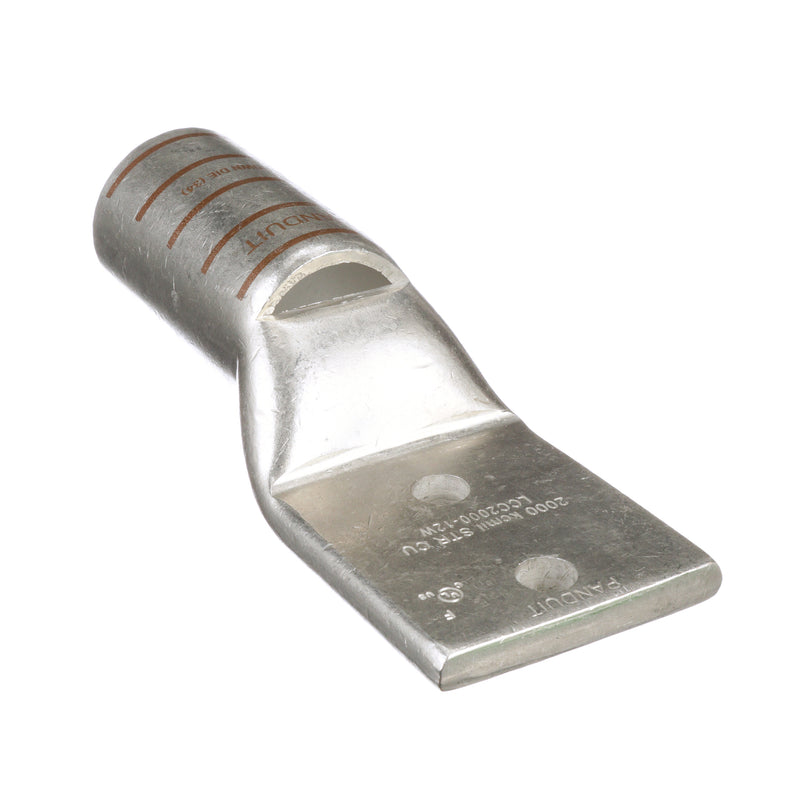

Copper Compression Lug, 1 Hole, 2000 kcmil, Long Barrel, 1/2 (12.7mm) Stud

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors-Lug
Lug Type 1 Stud Hole Lug
Sub Brand NA
Stud Hole Size (In.) 0.5
Stud Hole Size (mm) 12.7
Barrel Type Long Barrel with Inspection Window
Barrel Length (In.) 3.5
Barrel Length (mm) 88.9
Tongue Type Standard
Tongue Width (In.) 3.1
Tongue Width (mm) 78.74
Tongue Angle Straight
Tongue Thickness (In.) 0.45
Tongue Thickness (mm) 11.43
Overall Length (In.) 6.17
Overall Length (mm) 156.718
Finish/Coating Tin-Plated
Standards Met c UL us Listed , 90° C temperature rating when crimped with specified competitor crimping tools and dies
Maximum Voltage (kV) 35
Color Code Brown
Panduit Die Index Number NA
Burndy Die Index Number 34
T & B Die Index Number NA
Wire Strip Length (In.) 3-5/8
Wire Strip Length (mm) 92.075
