Panduit lugs [LCB3/0-12F-X], PAC343

Name: Panduit lugs [LCB3/0-12F-X], PAC343
Brand: Panduit
SKU: PAC343
Availability: InStock

Mã kho: PAC343

Mã nhà sản xuất: LCB3/0-12F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

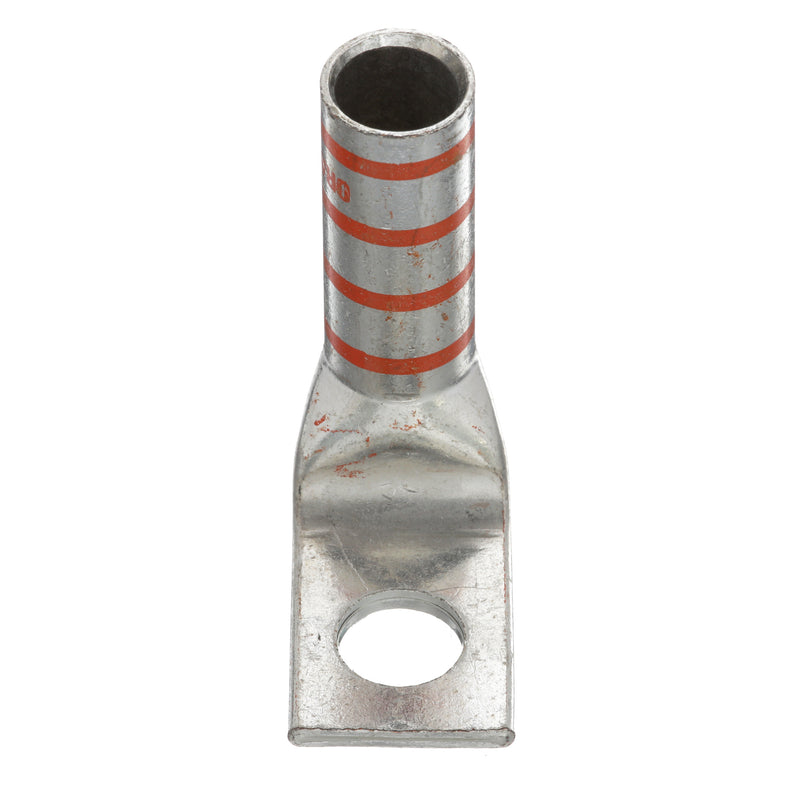

One-hole, long barrel lug, 3/0 AWG wire, 1/2 stud hole, 90° angle tongue.

Copper Conductor Size (AWG)	3/0
Copper Conductor Size (kcmil)	168
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Angle	90°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	1.98
Overall Length (mm)	59.7
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Orange
Panduit Die Index Number	P50
Burndy Die Index Number	14
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
