Panduit lugs [LCB350-12-X], PAC353

Name: Panduit lugs [LCB350-12-X], PAC353
Brand: Panduit
SKU: PAC353
Price: 381980.0 VND
Availability: InStock

Mã kho: PAC353

Mã nhà sản xuất: LCB350-12-X

Tên nhà sản xuất: Panduit

381.980₫ - 381.980₫

381.980₫

381.980₫ - 381.980₫

381.980₫

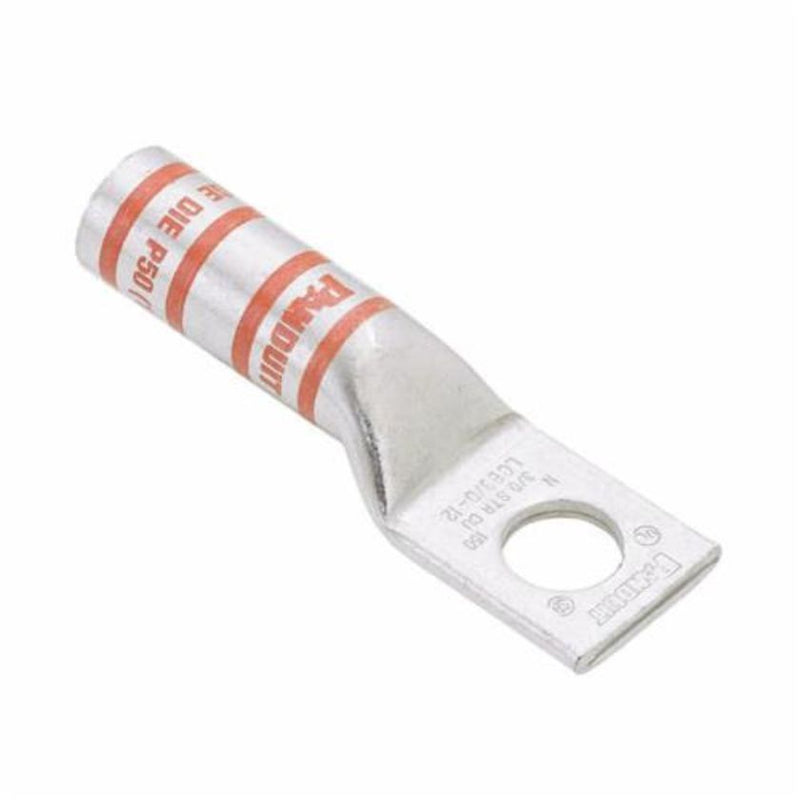

One-hole, long barrel lug, 350 kcmil cable, 1/2 stud hole.

Copper Conductor Size (kcmil)	350
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	2.24
Barrel Length (mm)	56.9
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	4.11
Overall Length (mm)	104.4
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
Wire Strip Length (In.)	2.31
Wire Strip Length (mm)	58.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
