Panduit lugs [LCB4/0-38F-X], PAC366

Name: Panduit lugs [LCB4/0-38F-X], PAC366
Brand: Panduit
SKU: PAC366
Price: 383160.0 VND
Availability: InStock

Mã kho: PAC366

Mã nhà sản xuất: LCB4/0-38F-X

Tên nhà sản xuất: Panduit

383.160₫ - 383.160₫

383.160₫

383.160₫ - 383.160₫

383.160₫

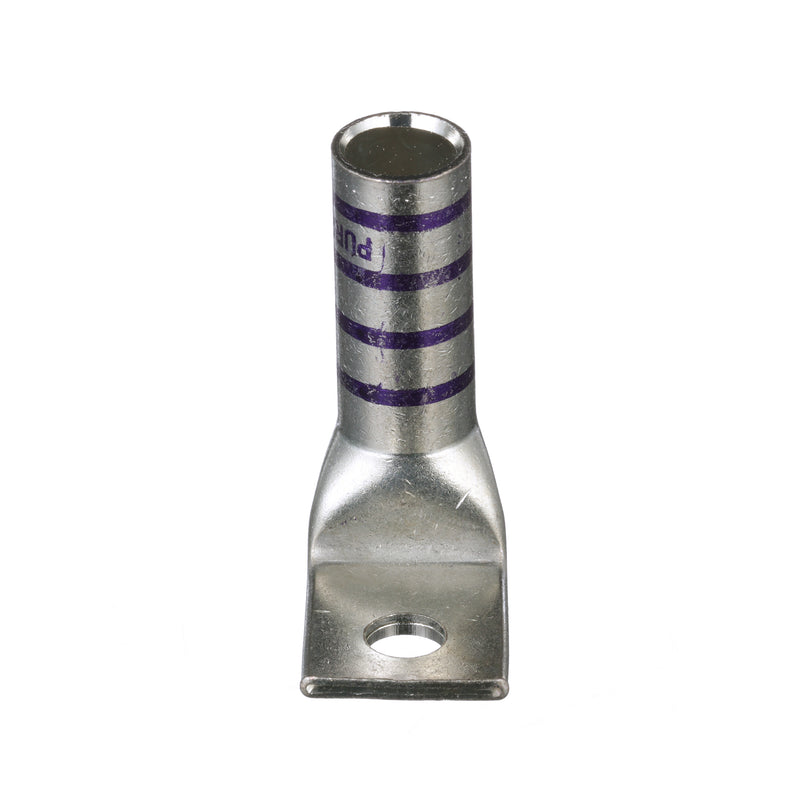

One-hole, long barrel lug, 4/0 AWG wire, 3/8 stud hole, 90° angle tongue.

Copper Conductor Size (kcmil)	212
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.56
Barrel Length (mm)	39.6
Tongue Type	Standard
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	90°
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	1.88
Overall Length (mm)	63
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	1.63
Wire Strip Length (mm)	41.3
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
