Panduit lugs [LCB4-38-L], PAC361

Name: Panduit lugs [LCB4-38-L], PAC361
Brand: Panduit
SKU: PAC361
Price: 83680.0 VND
Availability: InStock

Mã kho: PAC361

Mã nhà sản xuất: LCB4-38-L

Tên nhà sản xuất: Panduit

83.680₫ - 83.680₫

83.680₫

83.680₫ - 83.680₫

83.680₫

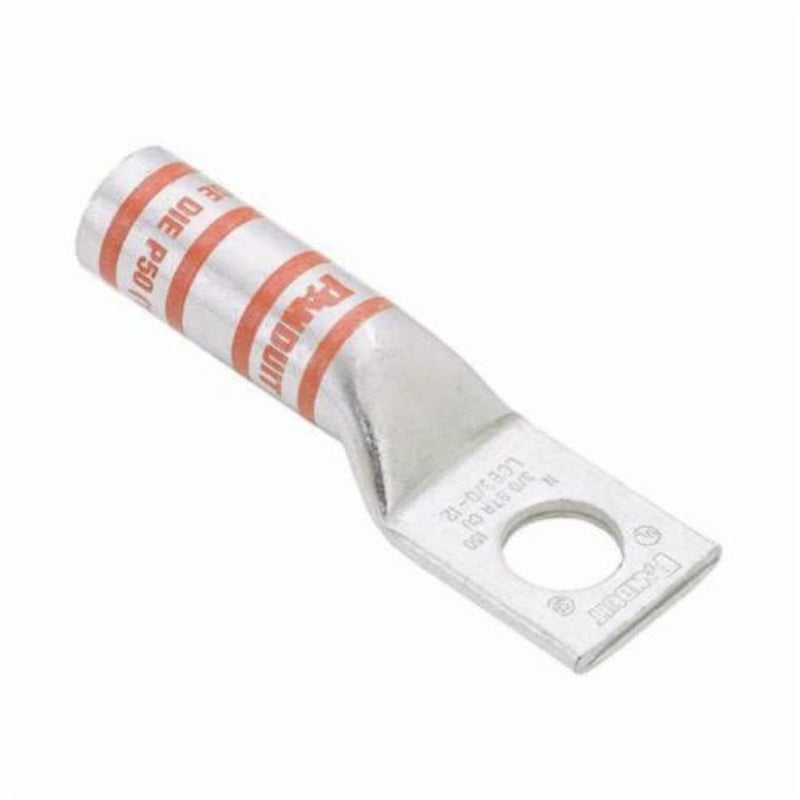

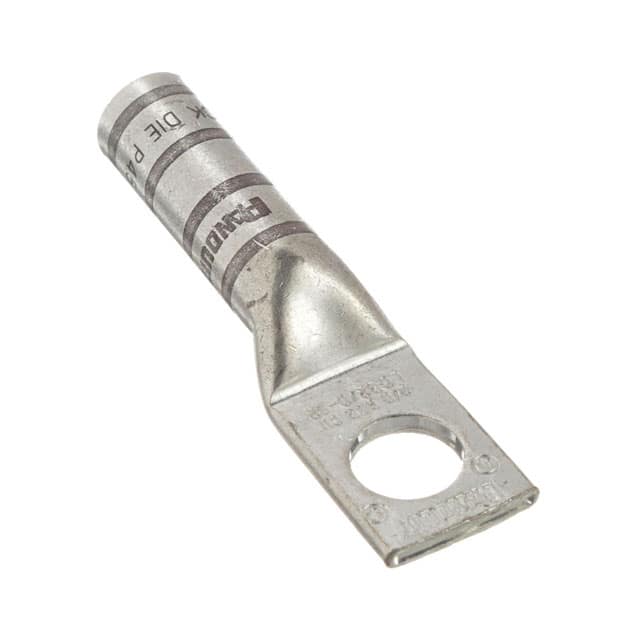

One-hole, long barrel lug, #4 — #3 AWG STR, #2 AWG SOL wire, 3/8 stud hole.

Copper Conductor Size (AWG)	#4
Copper Conductor Size (kcmil)	42
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.05
Barrel Length (mm)	26.7
Tongue Type	Standard
Tongue Width (In.)	0.62
Tongue Width (mm)	15.7
Tongue Angle	Straight
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.8
Overall Length (In.)	2.17
Overall Length (mm)	55.1
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	28.6
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
