Panduit lugs [LCB400-38H-6], PAD434

Name: Panduit lugs [LCB400-38H-6], PAD434
Brand: Panduit
SKU: PAD434
Availability: InStock

Mã kho: PAD434

Mã nhà sản xuất: LCB400-38H-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

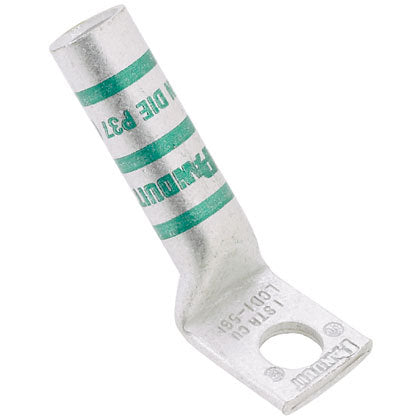

One-hole, long barrel lug, 400 kcmil cable, 3/8 stud hole, 45° angle tongue.

Copper Conductor Size (kcmil)	400
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	2.3
Barrel Length (mm)	58.4
Tongue Type	Standard
Tongue Width (In.)	1.39
Tongue Width (mm)	35.3
Tongue Angle	45°
Tongue Thickness (In.)	0.18
Tongue Thickness (mm)	4.3
Overall Length (In.)	3.53
Overall Length (mm)	89.7
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	2.38
Wire Strip Length (mm)	60.3
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
