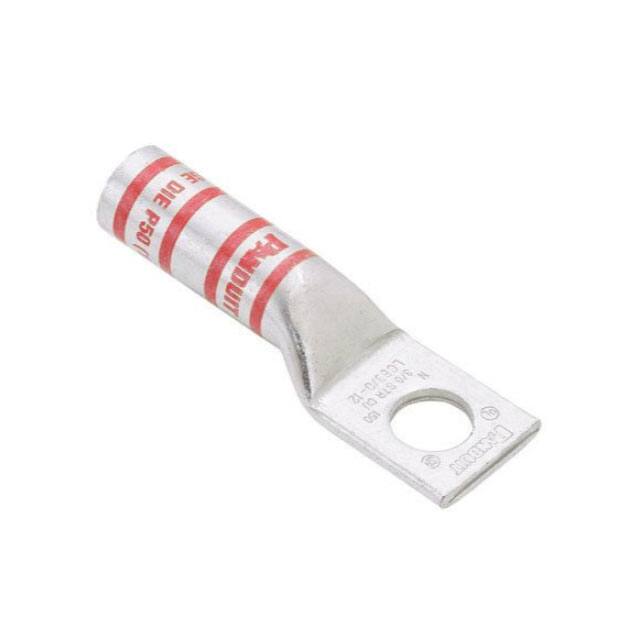

Panduit lugs [LCB8-38-L], PAD448

Name: Panduit lugs [LCB8-38-L], PAD448
Brand: Panduit
SKU: PAD448
Price: 64720.0 VND
Availability: InStock

Mã kho: PAD448

Mã nhà sản xuất: LCB8-38-L

Tên nhà sản xuất: Panduit

64.720₫ - 64.720₫

64.720₫

64.720₫ - 64.720₫

64.720₫

One-hole, long barrel lug, #8 AWG wire, 3/8 stud hole, standard package.

Copper Conductor Size (AWG)	#8
Copper Conductor Size (kcmil)	17
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	0.7
Barrel Length (mm)	17.8
Tongue Type	Standard
Tongue Width (In.)	0.6
Tongue Width (mm)	15.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Overall Length (In.)	1.75
Overall Length (mm)	44.5
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Red
Panduit Die Index Number	P21
Burndy Die Index Number	49
Wire Strip Length (In.)	42,828
Wire Strip Length (mm)	19.1
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
